2175

Compact MiniMast Antenna Tower for Space-Efficient Chamber Testing

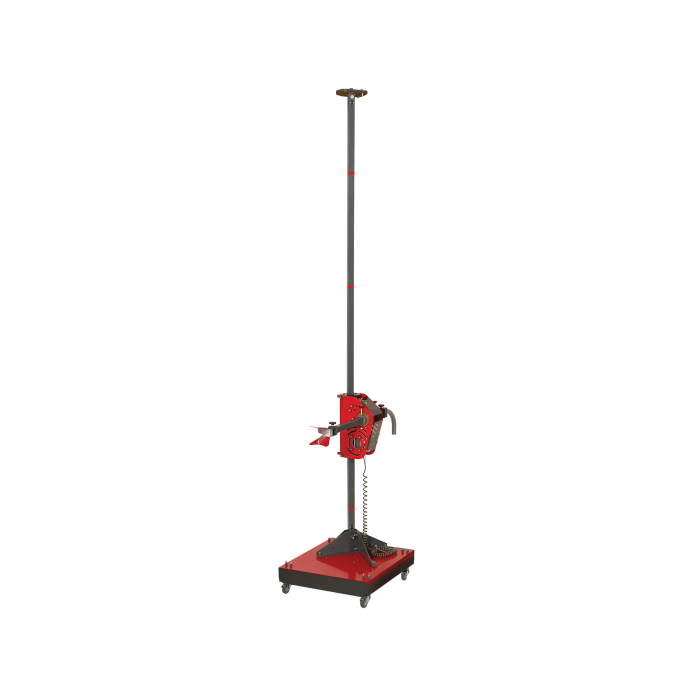

ETS‑Lindgren’s Model 2175 MiniMast™ Antenna Tower maximises available space in today’s compact chambers, while offering many features found on full-sized ETS‑Lindgren antenna towers. The mast section is made from one continuous piece of square fiberglass tubing, improving stability during ascent and descent of the antenna.

To facilitate measurement accuracy, off-centre beam mounted antennas can be individually height adjusted for true on-axis polarisation. Built with a rugged, high density, fiberglass-reinforced polymer, the unit’s mast and cross boom are highly resistant to deterioration from sunlight exposure. The square shape of the tubing helps prevent rotation and torsional stress. Supporting up to 9.1 kg (20 lb), the MiniMast is compatible with ETS‑Lindgren’s EMCenter™ with EMControl™ plug-in card.

Key Features:

• Compact Design for Small Chambers
• 9.1 kg (20 lb) Load Capacity
• Continuous Fiberglass Mast for Improved Stability
• Centerline Air Polarisation
