Erzia

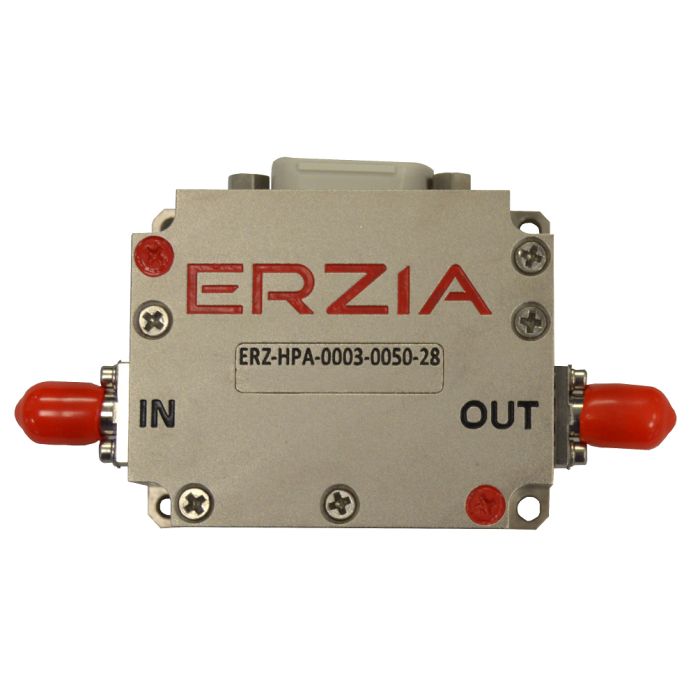

Wideband High Power Amplifier
The ERZ-HPA-0003-0050-28 is a high power amplifier providing an output power of 28 dBm and again of 34 dB. The compact size and modularity makes it ideal for a wide range of applications
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Frequency Start (GHz) | 0.03 |
| Frequency Stop (GHz) | 0.5 |
| Power Supply (V) | 12± 3V |
| Current (mA) | 416 |
| Applications |
|
| Storage Temperature | -55°C to 125°C |
| Band | Wideband |
| Output Power (dBm) | 28 |
| Gain (dB) | 34 |
| Operating Temperature | -45°C to 85°C |
| Connectors | SMA Female |
| Product Type | High Power Amplifier |
| Dimensions | 50 x 40 x 20 mm |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
