ERZ-HPA-0200-1800-30-DB9
ERZ-HPA-0200-1800-30-DB9
Erzia
Wideband High Power Amplifier

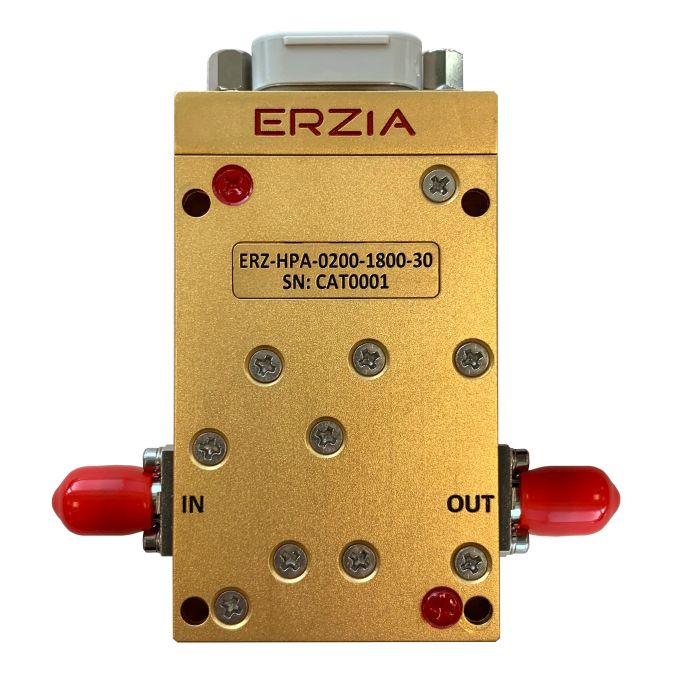

The ERZ-HPA-0200-1800-30-DB9 is a Wideband high power amplifier providing an output power higher than 30 dBm and a gain of 33 dB. The compact size and modularity make it ideal for a wide range of applications.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Frequency Start (GHz) | 2.0000 |
| Frequency Stop (GHz) | 18.0000 |
| Power Supply (V) | 12± 3V |
| Current (mA) | 1200 |
| Applications |
|
| Storage Temperature | -55°C to 125°C |
| Band | Wideband |
| Output Power (dBm) | 30 |
| Gain (dB) | 33 |
| Operating Temperature | -45°C to 85°C |
| Connectors | SMA Female / DB9 |
| Product Type | High Power Amplifier |
| Dimensions | 35.9 x 60.9 x 14.5 mm |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
