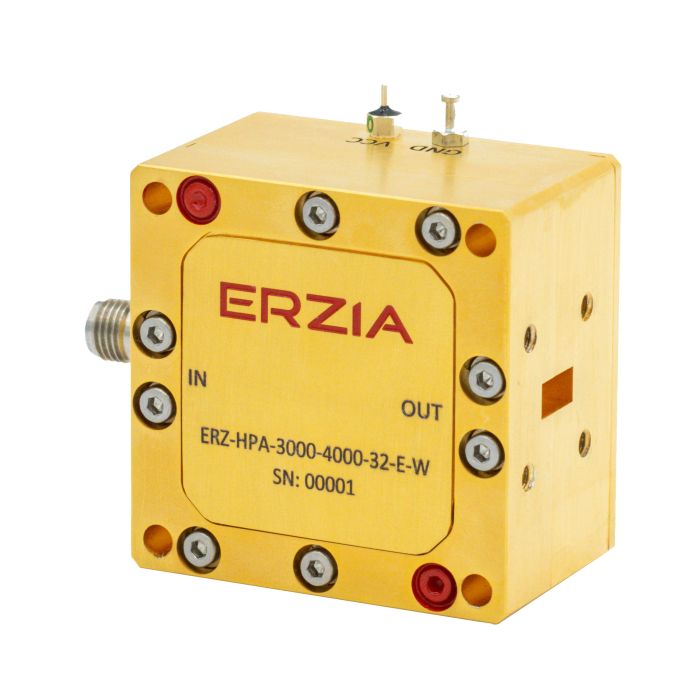

ERZ-HPA-3000-4000-32-E-W
ERZ-HPA-3000-4000-32-E-W
Erzia
Ka Band High Power Amplifier
The ERZ-HPA-3000-4000-32-E-W is a high power amplifier providing an output power of 33 dBm and a gain of 39 dB. The compact size and modularity makes it ideal for a wide range of applications.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Frequency Start (GHz) | 30.0000 |
| Frequency Stop (GHz) | 40.0000 |
| Power Supply (V) | 12± 2V |
| Current (mA) | 1500 |
| Applications |
|
| Storage Temperature | -55°C to 125°C |
| Band | Ka Band |
| Output Power (dBm) | 33 |
| Gain (dB) | 39 |
| Operating Temperature | -45°C to 85°C |
| Connectors |
IN: 2.92 mm Female
OUT: WR28 |
| Product Type | High Power Amplifier |
| Dimensions | 40 x 40 x 25 mm |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
