ERZ-HPF-1750-4100-2
ERZ-HPF-1750-4100-2
Erzia
High Pass Filter

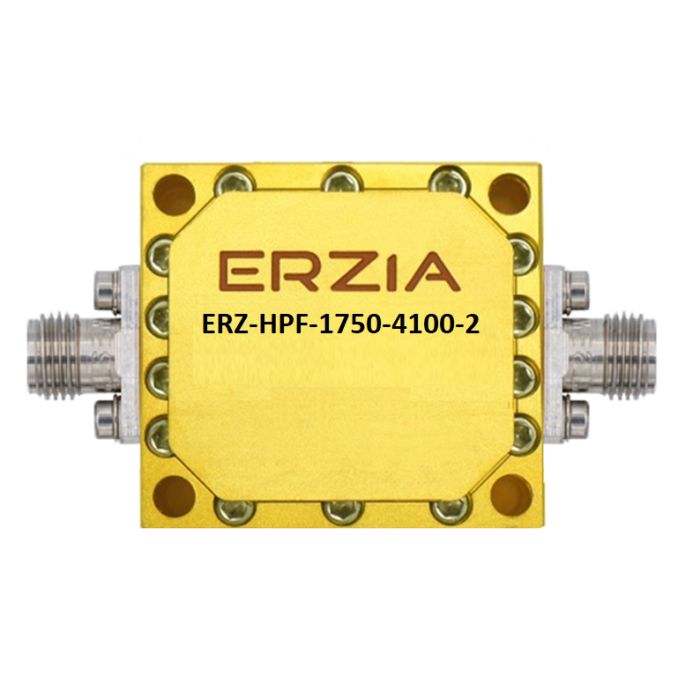

The ERZ-HPF-1750-4100-2 is a suspended substrate stripline high pass filter integrated in a compact, rugged and connectorised module allowing easy integration in a wide range of final applications.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Applications |
Industrial / Laboratory
Satcom / Telecom Space / Aerospace / Military |
| Technology | Suspended Substrate |
| Frequency Start (GHz) | 1.75 |
| Frequency Stop (GHz) | 41.0000 |
| Insertion Loss (dB) | 1.3 |
| Return Loss (dB) | 13.0000 |
| Storage Temperature | -55°C to 125°C |
| Maximum RF Input Power (dBm) | 40.0000 |
| Operating Temperature | -40°C to 85°C |
| Connectors | 2.92 mm Female |
| Product Type | Suspended Substrate Filter |
| Dimensions | 30 x 25 x 10 mm |
