Erzia

Ka Band Low Noise Amplifier

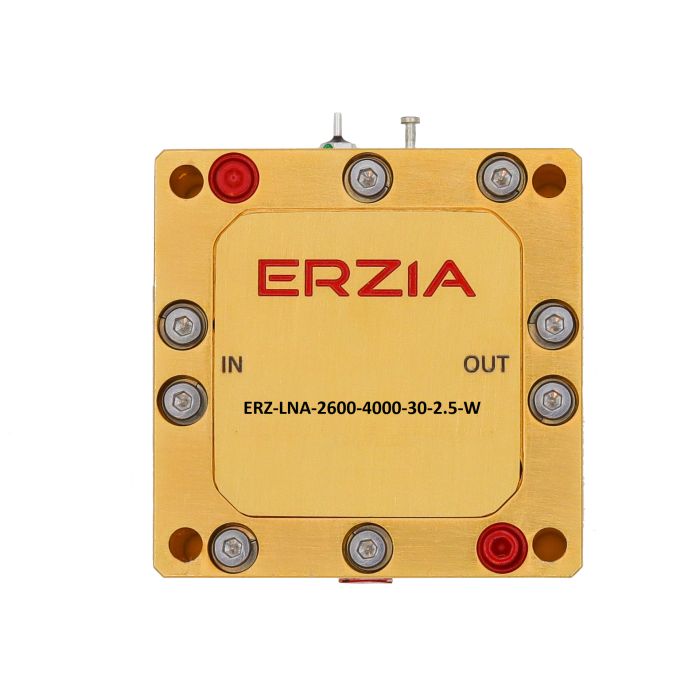

The ERZ-LNA-2600-4000-30-2.5-W is a Ka Band low noise amplifier providing a gain of 30 dB and a low noise figure of 2.5 dB. The compact size and modularity makes it ideal for a wide range of applications.
Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

More Information
Attribute Value
Applications
  • Industrial
  • Laboratory
  • Satcom
  • Telecom
  • Space
  • Aerospace
  • Military
Frequency Start (GHz) 26.0000
Frequency Stop (GHz) 40.0000
Power Supply (V) 15± 2V
Current (mA) 133
Storage Temperature -55°C to 125°C
Band Ka Band
Output Power (dBm) 15.5
Gain (dB) 34
Operating Temperature -40°C to 85°C
Connectors WR28
Product Type Low Noise Amplifier
Dimensions 50 x 66 x 69.3 mm
More Information
Attribute Value
Data Sheet Click here to view
