Erzia
V Band Low Noise Amplifier

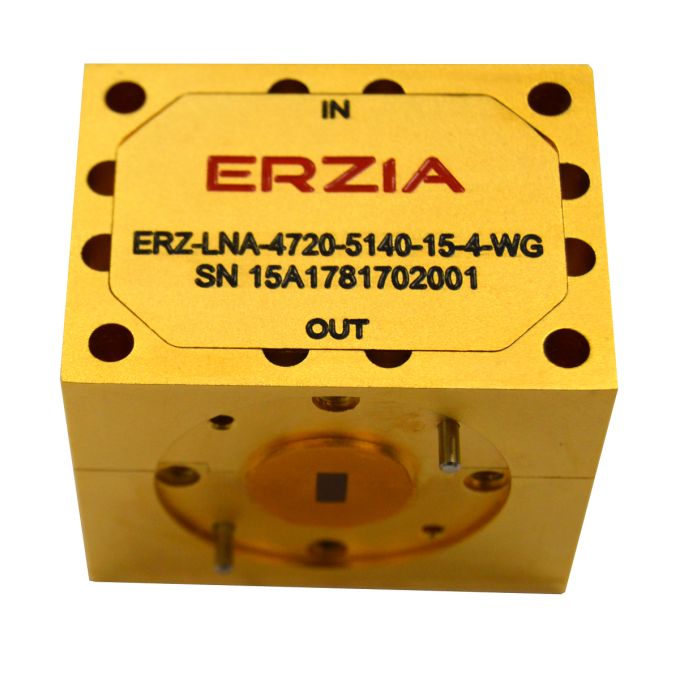

The ERZ-LNA-4720-5140-15-4 is a V band low noise amplifier providing a gain of 11 dB and a noise figure below 4 dB. The compact size and modularity makes it ideal for a wide range of applications.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Applications |
|
| Frequency Start (GHz) | 47.2 |
| Frequency Stop (GHz) | 50.0000 |
| Power Supply (V) | 12± 1V |
| Current (mA) | 50 |
| Storage Temperature | -55°C to 125°C |
| Band | V Band |
| Output Power (dBm) | 12 |
| Gain (dB) | 11 |
| Operating Temperature | -55°C to 85°C |
| Connectors | WR19 |
| Product Type | Low Noise Amplifier |
| Dimensions | 30 x 40 x 32.5 mm |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
