FS-200
FS-200
ETS-Lindgren
FerroSorb EMC Absorber
FerroSorb Hybrid EMC Absorber

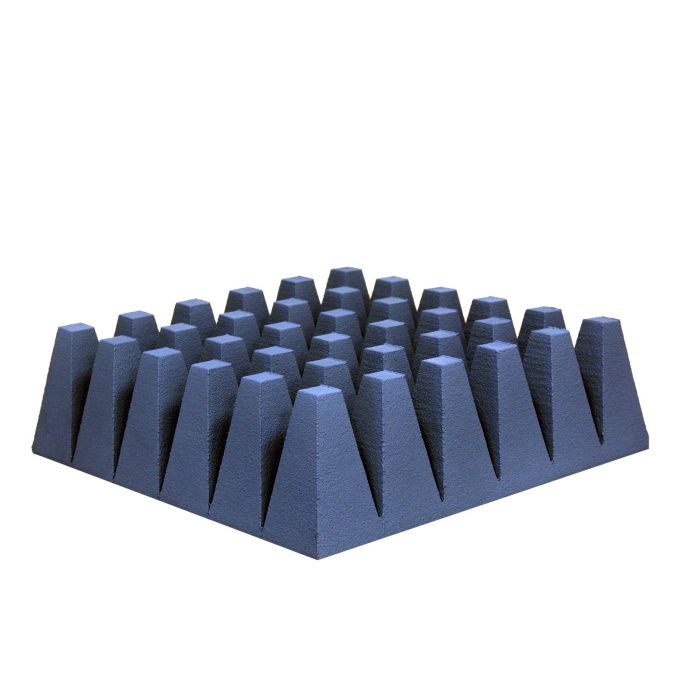

ETS-Lindgren’s FerroSorb FS-200 is part of the FS Family of hybrid (ferrite tile and carbon loaded material) absorbers.
The FAA-200 loaded foam part is designed to match the impedance of ETS-Lindgren’s FT-1500 Ferrite Tile Panel. When combined, these two absorber technologies become the FS-200 absorber system.
Only 20 cm high (8.0 in), this absorber has very low profile yet it has excellent absorption for the entire range of frequencies.
Key Features:
- 30 MHz to 40 GHz Frequency Range
- Small Profile
- For Use with Ferrite Tile Backing
- Up to 775 W/m2 (0.5 W/in2) CW Power Handling
- Fire Retardant
- FlexSorb option available
Contact us for Lead Time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Key Features |
|
| Dimensions | 60.0 cm x 60.0 cm x 20.3 cm (23.6 in x 23.6 in x 8.0 in) |
| Weight | N/A |
| Maximum Frequency | 40 GHz |
| Minimum Frequency | 30 MHz |
| Standards |
|
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
