Harting 09140013101
09140013101PROMO
Harting

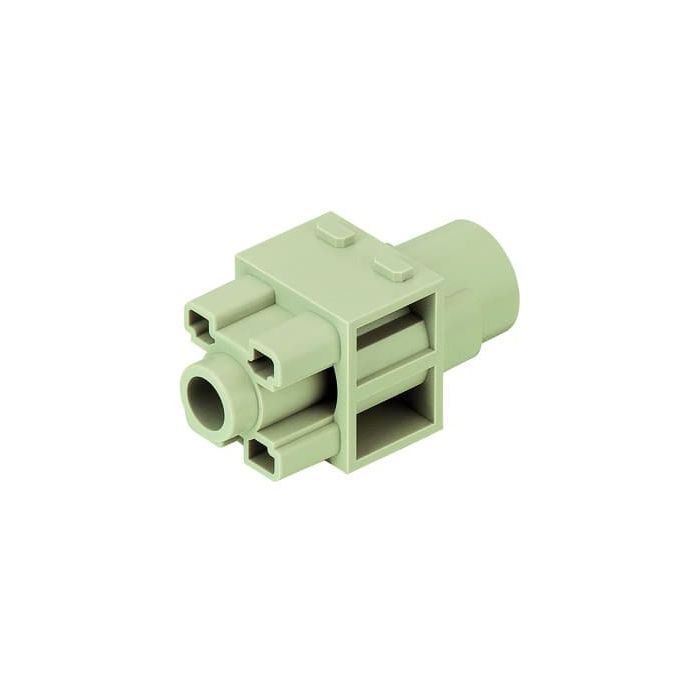

Han 200A crimp module, female
Han® 200 A module, Crimp termination, Female, Contacts: 1, Conductor cross-section: 25...70 mm, Rated current:200 A, Polycarbonate (PC), RAL 7032 (pebble grey)
In stock
| Attribute | Value |
|---|---|
| Product Segment | 407 Han-Modular® |
| Product Family | Han-Modular Modules |
| Product Brand Name | 09 14 001 3101 |
| Manufacturer | HARTING |
| Customs tariff number | 85389099 |
| Quantity Min | 1 |
| Quantity Interval | 1 |
| Country of origin | DE |
| Manufacturer's Brand | Han-Modular® |
| Number of poles | 1 |
| Number of power contacts | 1 |
| Insertion cycles minimum | 500 |
| PE connection present ? | No |
| Rated voltage (V) | 800 |
| Contact type | Crimp termination |
| Contact design | Socket |
| Rated_surge_voltage (V) | 8 |
| Conductor connection method | crimp connection |
| Pollution degree | 3 |
| Conductor cross-section mm2 | 25…25 |
| Contact insert without contact ? | Yes |
| Contact insert material | Plastic |
| Fire resistance class | V0 |
| Standards | EN 60664-1 |
| Current Rating (A) | 200 |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
