Harting 09140022702
09140022702PROMO
Harting

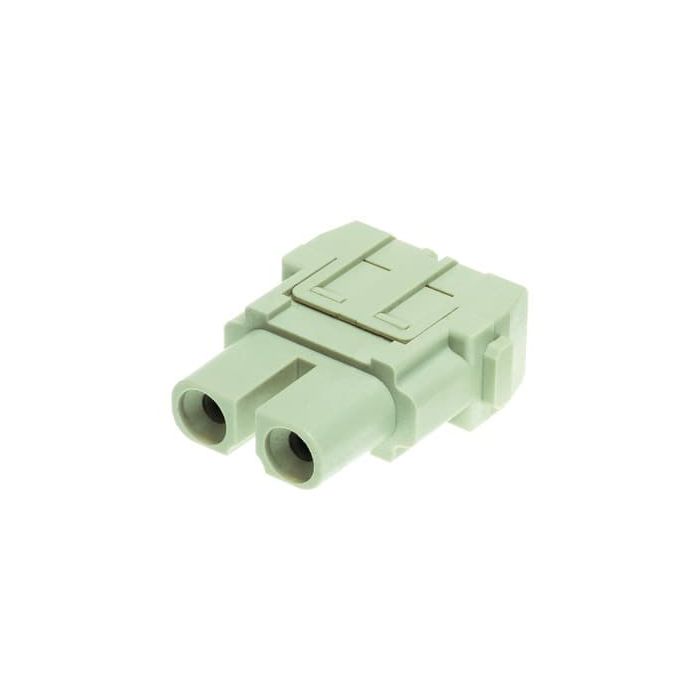

Han 40A axial module, female 6-10 mm
Han® 40 A module, Axial screw termination, Female, Contacts: 2, Conductor cross-section: 6...10 mm, Rated current:40 A, Polycarbonate (PC), RAL 7032 (pebble grey), Copper alloy, Silver plated
In stock
| Attribute | Value |
|---|---|
| Product Segment | 407 Han-Modular® |
| Product Family | Han-Modular Modules |
| Product Brand Name | 09 14 002 2702 |
| Manufacturer | HARTING |
| Customs tariff number | 85366990 |
| Quantity Min | 2 |
| Quantity Interval | 2 |
| Country of origin | DE |
| Manufacturer's Brand | Han-Modular® |
| Number of poles | 2 |
| Material contact surface | Silver |
| Number of power contacts | 2 |
| Insertion cycles minimum | 500 |
| Rated voltage (V) | 1000 |
| Contact type | Axial screw termination |
| Insulation stripped length (mm) | 8 |
| Contact design | Socket |
| Rated_surge_voltage (V) | 8 |
| Conductor connection method | Axial screw connection |
| Pollution degree | 3 |
| Conductor cross-section mm2 | 6…6 |
| Contact insert material | Plastic |
| Material contact | Other copper alloys |
| Fire resistance class | V0 |
| Standards | EN 60664-1 |
| Current Rating (A) | 40 |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
