Harting 09340032616
09340032616PROMO
Harting

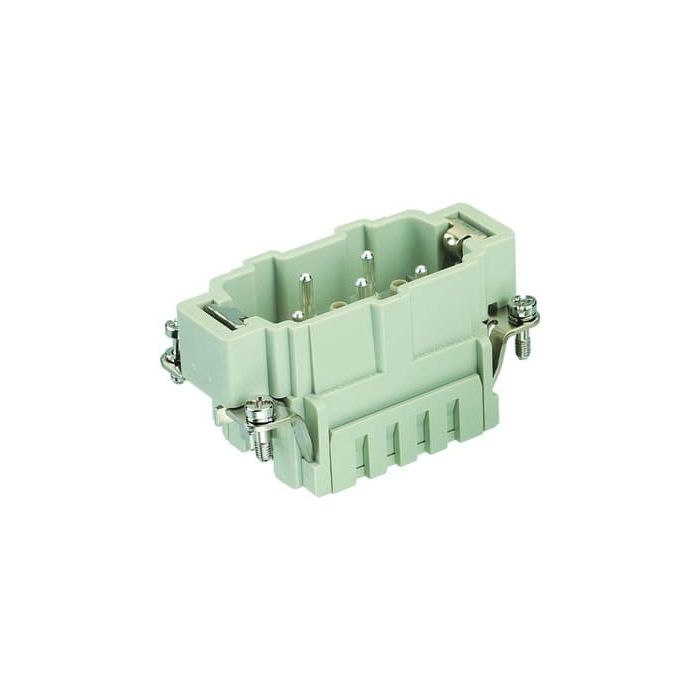

Han 3HvES-M
Inserts, Cage-clamp termination, Male, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current:16 A, Size: 10 B, Contacts: 3, + 2 additional relay contacts, Conductor cross-section: 0.14...2.5 mm, Copper alloy, Silver plated
In stock
| Attribute | Value |
|---|---|
| Product Segment | 414 Han HvE/ HvES |
| Product Family | Han HvE Male Insert- |
| Product Brand Name | 09 34 003 2616 |
| Manufacturer | HARTING |
| Customs tariff number | 85366990 |
| Quantity Min | 1 |
| Quantity Interval | 1 |
| Country of origin | DE |
| Manufacturer's Brand | Han® Hv ES |
| Size | 10 B |
| Number of poles | 3 |
| Material contact surface | Silver |
| Insertion cycles minimum | 500 |
| PE connection present ? | Yes |
| Rated voltage (V) | 830 |
| Contact design | Pin |
| Rated_surge_voltage (V) | 8 |
| Wire protection present ? | No |
| Insert material | Thermoplast |
| Conductor connection method | Spring pulley connection |
| Pollution degree | 3 |
| Conductor cross-section mm2 | 0.14…2.5 |
| Material contact | Other copper alloys |
| Fire resistance class | V0 |
| Standards | EN 60664-1 |
| Current Rating (A) | 16 |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
