Harting 11051053001
11051053001PROMO
Harting

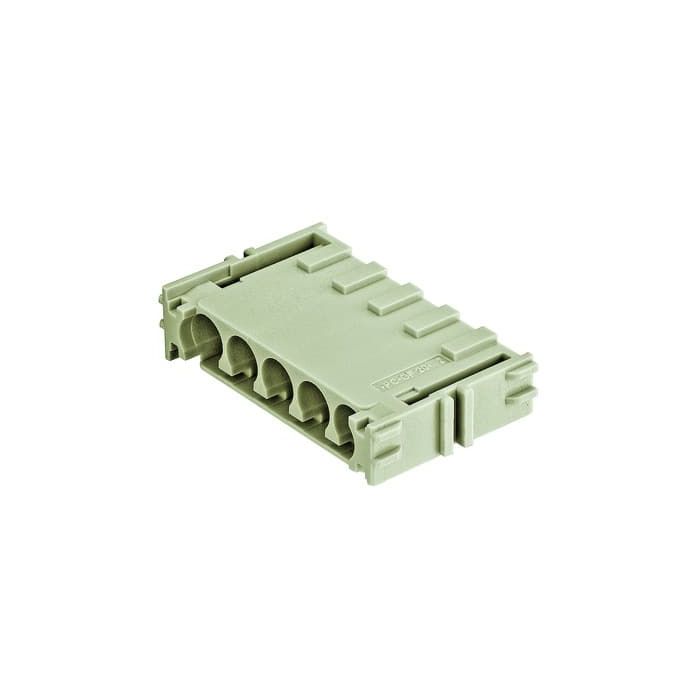

Han-Yellock module M-c, grey
Inserts, Module, Crimp termination, Male, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current:20 A, Contacts: 5, Conductor cross-section: 0.14...4 mm, Copper alloy, Silver plated
Buy Online
| Attribute | Value |
|---|---|
| Product Segment | 461 Han-Yellock® Inserts |
| Product Family | Han-Yellock® Male In |
| Product Brand Name | 11 05 105 3001 |
| Manufacturer | HARTING |
| Customs tariff number | 85389099 |
| Quantity Min | 2 |
| Quantity Interval | 2 |
| Country of origin | DE |
| Manufacturer's Brand | Han-Yellock® |
| Number of poles | 5 |
| Material contact surface | Silver |
| Insertion cycles minimum | 500 |
| Rated voltage (V) | 500 |
| Contact design | Pin |
| Rated_surge_voltage (V) | 6 |
| Wire protection present ? | No |
| Insert material | Thermoplast |
| Conductor connection method | crimp connection |
| Pollution degree | 3 |
| Conductor cross-section mm2 | 0.14…4 |
| Material contact | Other copper alloys |
| Fire resistance class | V0 |
| Standards | EN 60664-1 |
| Current Rating (A) | 20 |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
