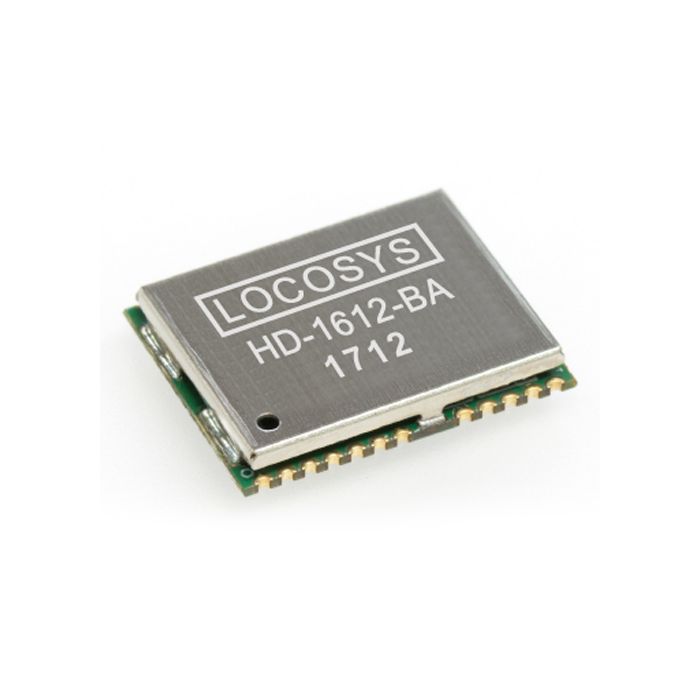

HD-1612-BA
HD-1612-BA
LOCOSYS Technology
Complete standalone GNSS module.
LOCOSYS HD-1612-BA is a complete standalone GNSS module which uses ALLYSTAR latest HD8020 GNSS chip to integrate with an additional LNA and SAW filter. The module can simultaneously acquire and track multiple satellite constellations that include GPS, BEIDOU, GALILEO, QZSS and SBAS. It features low power and small form factor. Besides, it can provide you with superior sensitivity and performance even in urban canyon and dense foliage environment.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Key Features |
|
| Maximum Input Voltage | 3.0V - 3.6V |
| Module Type | GNSS Module |
| Satellite Systems | GPS, BEIDOU, QZSS |
| Power (mA) | 29.5mA |
| VB (uA) | 13uA |
| Operating Temperature | -40 ~ 85°C |
| Interface | UART |
| Dimensions | 16 x 12.2 x 2.2 mm |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
