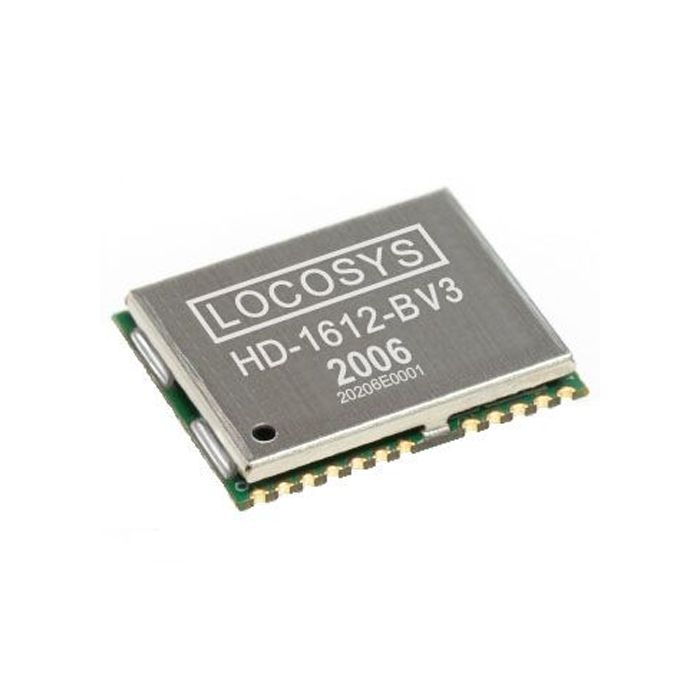

HD-1612-BV3
HD-1612-BV3
LOCOSYS Technology
High-performance dual-band sub-meter GNSS positioning module (L1+L5), +3.3V, +IRNSS
The LOCOSYS HD-1612-BV3 are high-performance dual-band GNSS positioning modules that are capable of tracking all global civil navigation systems. They integrate efficient power management architecture to perform at low power whilst delivering high sensitivity. The concurrent reception of L1 and L5 band signals achieves sub-meter position accuracy, making these modules suitable for personal, automotive and marine navigation systems.
The RF front end of HD-1612-BV3 is specifically designed to comply with the sensitivity specification contained in the AIS-140 standard. It is the best solution for those involved in the design of tracking applications in compliance with AIS-140.
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Key Features |
|
| Input Voltage | 3.0V - 3.6V |
| Satellite Systems |
|
| Power (mA) | 41mA |
| VB (uA) | 12uA |
| Operating Temperature | -40 ~ 85°C |
| Interface | UART |
| Dimensions | 16 x 12.2 x 2.4 mm |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
