HI-15530 Series MIL-STD-1553 CMOS Encoder and Decoder
The HI-15530 is a high performance CMOS integrated circuit designed to meet the requirements of MIL-STD-1553 and similar Manchester II encoded, time division multiplexed serial data protocols. The HI-15530 contains both an Encoder and Decoder that operate independently. It is fully compatible with either 5V or 3.3V logic and transceivers.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
HI-15530CLM Specifications
- Compliant to MIL-STD-1553
- 5V or 3.3V operation
- Interfaces to HI-1567 transceiver family
- Small footprint 24-Pin plastic SOIC package option
- Manchester II Encode and Decode
- Sync identification and Lock-in
- Clock recovery
- Industrial & Extended Temperature Ranges Available
- Direct replacement for Harris HD15530, GEC Plessey Semiconductors MAS15530 and Aeroflex ACT15530
| Attribute | Value |
|---|---|
| RoHS | No |
| Product Type | MIL-STD-1553 Encoder / Decoder ICs |

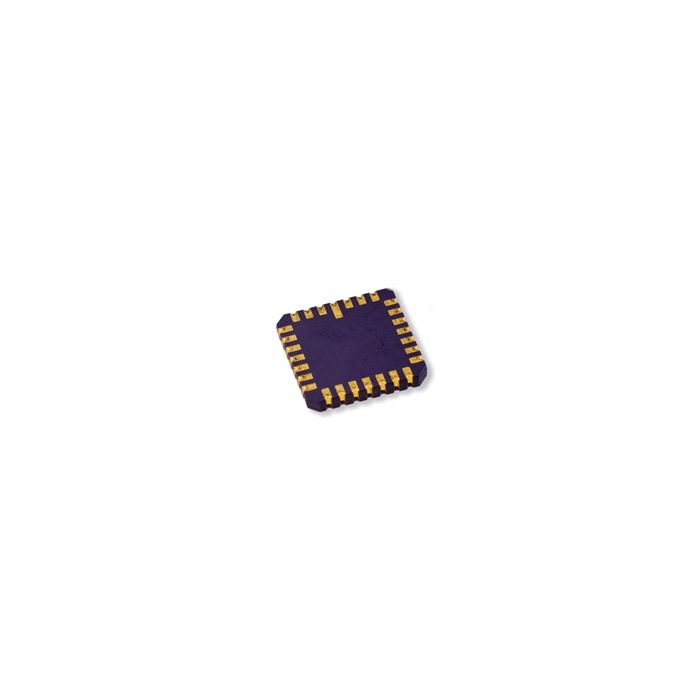

| Package Description | 28 Pin Ceramic Leadless Chip Carrier |
| Product Longevity | > 10 years |
| Applications |
|
| Flow | M |
| Temperature Range | -55°C to +125°C |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
