HI-1568CDM
HI-1568CDM
Holt Integrated Circuits
HI-1568 Series MIL-STD-1553 The smallest most power efficient 5V dual transceiver
Holt Integrated Circuits, the leader in ARINC 429 components, has now turned its expertise to MIL-STD-1553. Using proven design techniques and state-of-the-art analog CMOS technology, the new HI-1567 is the smallest and most power-efficient 5V dual transceiver in the industry.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
HI-1568CDM Specifications
- Compliant to MIL-STD-1553A & B and MIL-STD-1760
- CMOS Technology For Low Standby Power
- Smallest Footprint Available in 20-Pin Plastic ESOIC Package
- Less Than 1.0W Maximum Power Dissipation
- Available in DIP, Flatpack and Small Outline ESOIC Package Options
- Industrial & Extended Temperature Ranges Available
- Industry Standard Pin Configurations
| Attribute | Value |
|---|---|
| RoHS | No |
| Product Type | MIL-STD-1553 Transceiver ICs |

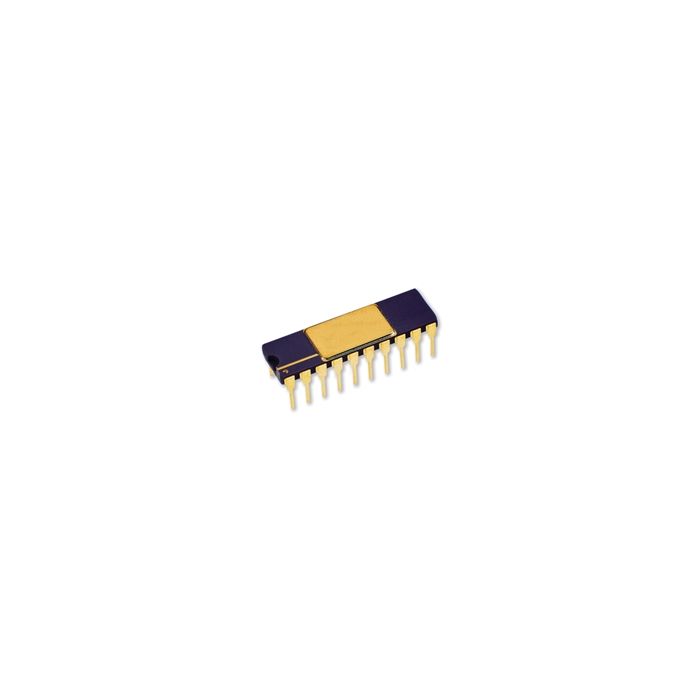

| Package Description | 20 Pin Ceramic Side-Brazed DIP |
| Product Longevity | > 10 years |
| Applications |
|
| Flow | M |
| Temperature Range | -55°C to +125°C |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
