HI-1581PCIF
HI-1581PCIF
Holt Integrated Circuits
HI-1581 Series MIL-STD-1553 True single chip, dual 3.3V transceiver
Holt Integrated Circuits continues its support of the MIL-STD-1553 / 1760 data buses with a true single chip, dual 3.3V transceiver. Using proven design techniques and state-of-the-art analog CMOS technology, the new HI-1579 / HI-1581 dissipates only 500mW when transmitting at 100% duty cycle while still delivering the required power to the bus.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
HI-1581PCIF Specifications
- Compliant to MIL-STD-1553A & B, MIL-STD-1760, and ARINC 708A
- 3.3V Single Supply Operation
- CMOS Technology for Low Standby Power
- Smallest Footprint Available in 20-Pin Plastic ESOIC (Thermally Enhanced) Package
- Less Than 0.5W Maximum Power Dissipation
- Available in DIP and Small Outline ESOIC Package Options
- Industrial & Extended Temperature Ranges Available
- Industry Standard Pin Configurations
| Attribute | Value |
|---|---|
| RoHS | Yes |
| Product Type | MIL-STD-1553 Transceiver ICs |

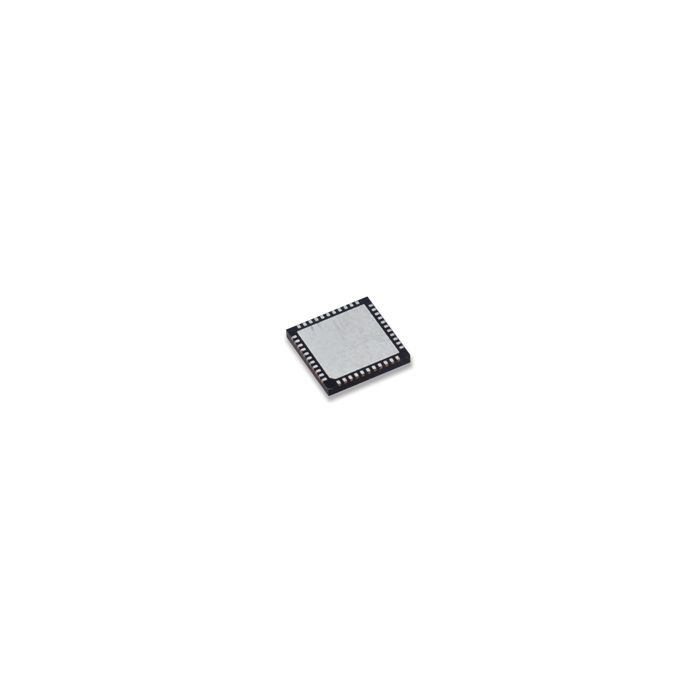

| Package Description | 44 Pin Plastic 7mm x 7mm Chip-Scale Package (QFN) |
| Moisture Sensitivity Level | 3.0000 |
| Product Longevity | > 10 years |
| Applications |
|
| Flow | I |
| Theta JA (°C/W): | 31.4 |
| Theta JB (°C/W): | 16.4 |
| Temperature Range | -40°C to +85°C |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
