HI-1584PCTF
HI-1584PCTF
Holt Integrated Circuits
HI-1584 Series MIL-STD-1553 Drop-in replacement for DDC® transceiver, BU-67401L0C0x-102.
The HI-1584 is an ultra-low power CMOS dual transceiver designed to meet the requirements of the MIL-STD-1553 and MIL-STD-1760 specifications. It is a pin-compatible, 'form, fit and function' drop-in replacement for the Data Device Corporation (DDC®) MIL-STD-1553 transceiver, BU-67401L0C0x-102.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
HI-1584PCTF Specifications
- Compliant to MIL-STD-1553A and B, MIL-STD-1760 and ARINC 708A
- 3.3V Single Supply Operation

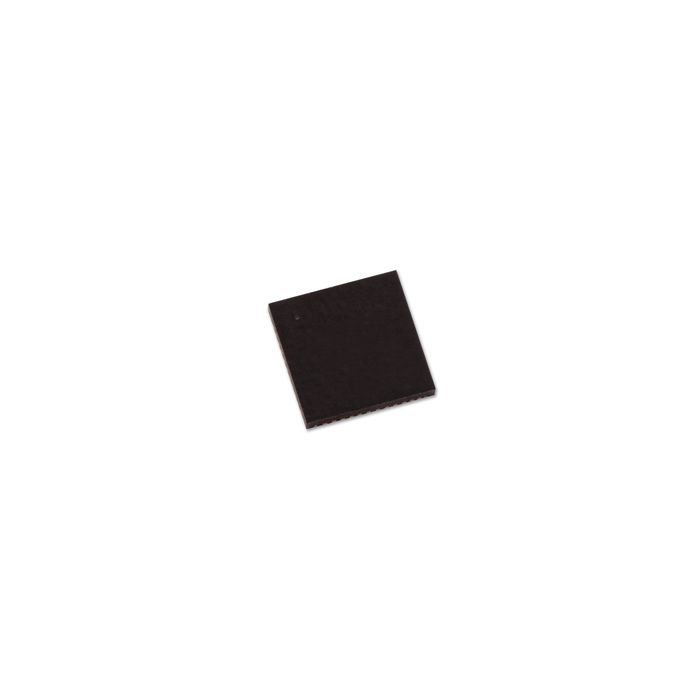

- Small 7mm x 7mm 48-pin plastic chip-scale package
- Less than 0.5W maximum power dissipation
- Drop in replacement for DDC BU-67401L0C0x-102
| Attribute | Value |
|---|---|
| RoHS | Yes |
| Product Type | MIL-STD-1553 Transceiver ICs |
| Package Description | 48 Pin Plastic 7mm x 7mm Chip-Scale Package (QFN) |
| Moisture Sensitivity Level | 3.0000 |
| Product Longevity | > 10 years |
| Applications |
|
| Flow | T |
| Theta JA (°C/W): | 27.3 |
| Theta JB (°C/W): | 15.8 |
| Temperature Range | -55°C to +125°C |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
