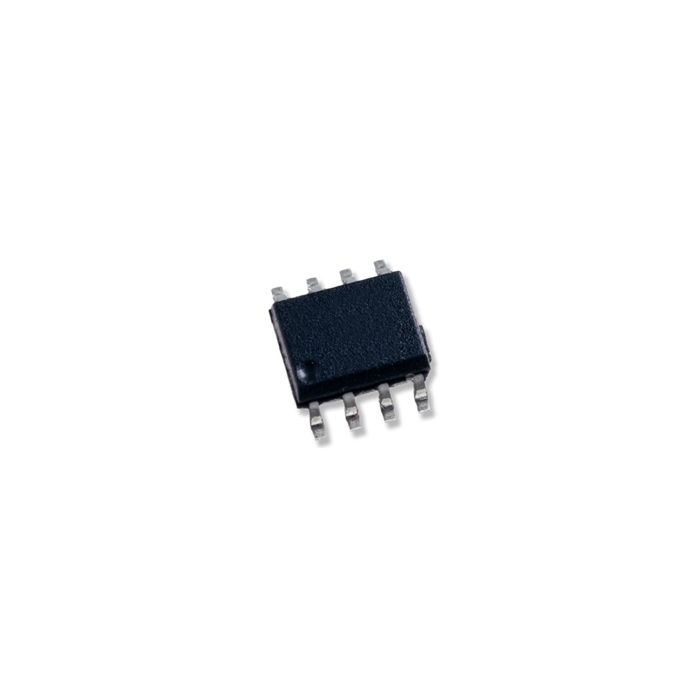

HI-3000 Series 1 Mbps Controller Area Network transceiver IC
The HI-3000H is a 1 Mbps Controller Area Network (CAN) transceiver optimized for use in high temperature avionics applications. The device is capable of operating at extended temperature ranges of -55°C to 175°C for plastic packages and -55°C to 200°C for the ceramic CERDIP-8 package. It interfaces between a CAN protocol controller and the physical wires of the bus in a CAN network. Differential output amplitude and current drive capability are specifically enhanced to meet the needs of long cable runs typical of avionics applications.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
HI-3000PSHF Specifications
- Extended Temperature Ranges -55°C to 175°C (plastic SOIC-8 package) and -55°C to 200°C (ceramic CERDIP-8 package)
- Compatible with ARINC 825 and ISO 11898-5 standards
- Signaling rates up to 1Mbit/s
- Internal VDD/2 voltage source available to stabilize the recessive bus level if split termination is used (SPLIT pin)
- Detection of permanent dominant on TXD pin (babbling idiot protection)
- High impedance allows connection of up to 120 nodes
- Input levels compatible with 3.3V or 5V controllers
- CANH, CANL and SPLIT pins short-circuit proof to +/-58V
- Will not disturb the bus if unpowered
| Attribute | Value |
|---|---|
| Product Type | ARINC 825 Data Bus IC |
| Package Description | 8 Pin Plastic SOIC - NB |
| Moisture Sensitivity Level | 1.0000 |
| Product Longevity | > 10 years |
| Applications |
|
| Flow | H |
| Theta JA (°C/W): | 81.6 |
| Theta JB (°C/W): | 50.3 |
| Temperature Range | -55°C to +175°C |
| RoHS | Yes |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
