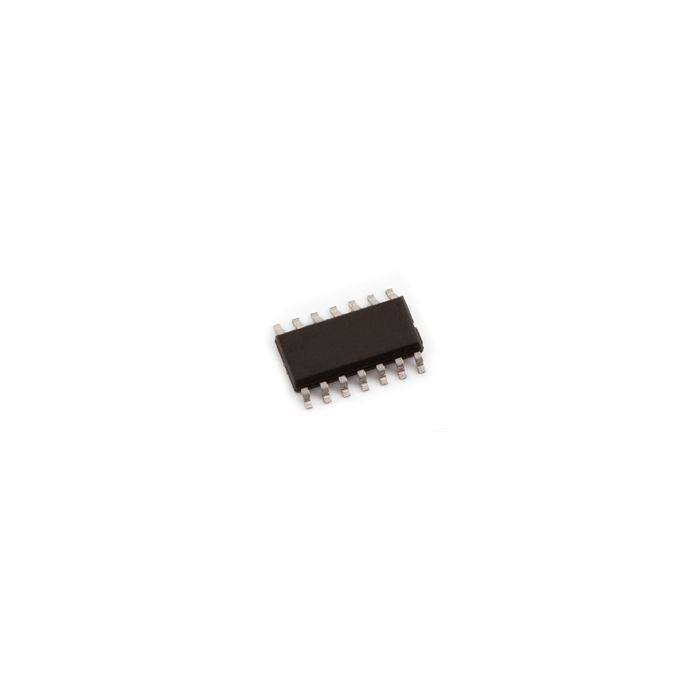

HI-3185PSIF-N
HI-3185PSIF-N
Holt Integrated Circuits
HI-3185 Series Line Driver
The HI-3182PSX-N, HI-3184PSX-N and HI-3185PSX-N bus interface products are silicon gate CMOS devices designed as a line driver in accordance with the ARINC 429 bus specifications. In addition to being functional upgrades of Holt's HI-8382 & HI-8383 products, they are also alternate sources for the HS-3182 ( Intersil/Harris), the RM3182 (Fairchild /Raytheon) and the BD429 & DEI1022 (DEI/DDC) line driver products that do not have integral heat-sinks.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
HI-3185PSIF-N Specifications
- Low Power CMOS
- TTL and CMOS Compatible Inputs
- Programmable Output Voltage Swing
- Adjustable ARINC Rise and Fall Times
- Plastic 14 Pin Narrow Body & 16-Pin Wide Body SOIC Packages without a Heat-sink are Available
- Pin-for-Pin Alternative For DEI/DDC/Intersil/Fairchild Applications
- Operates At Data Rates Up To 100 Kbits
- Overvoltage Protection
- Industrial & Extended Temperature Ranges Available
| Attribute | Value |
|---|---|
| RoHS | Yes |
| Product Type | ARINC_429_Line_Drivers |
| Package Description | 14 Pin Plastic SOIC - NB (no heat-sink) |
| Moisture Sensitivity Level | 1.0000 |
| Applications |
|
| Flow | I |
| Temperature Range | -40°C to +85°C |
