HI-3200PQI
HI-3200PQI
Holt Integrated Circuits
HI-3200Series Avionics single chip CMOS data management IC
The HI-3200 / HI-3201 from Holt Integrated Circuits is a single chip CMOS data management IC capable of managing, storing and forwarding avionics data messages between eight ARINC 429 receive channels, four ARINC 429 transmit channels and a single CAN / ARINC 825 data bus.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
HI-3200PQI Specifications
- Eight ARINC 429 Receive channels
- Four ARINC 429 Transmit channels
- ARINC 825 / CAN Bus interface
- 32KB On-chip user-configurable data storage memory
- Programmable received data filtering for ARINC 429 and ARINC 825 (CAN) buses
- Programmable Transmission schedulers for periodic ARINC 429 and ARINC 825 (CAN) message broadcasting
- Flexible protocol bridge for ARINC 429 to ARINC 825 (CAN) and ARINC 825 (CAN) to ARINC 425
- Serial Peripheral Interface (SPI) (20MHz)
- Auto-initialization feature allows power-on configuration or independent operation without a CPU
- ARINC 429 Loopback self-test mode
- RAM Built-in self-test (BIST)
- Industrial (-40°C to +85°C) and Extended (-55°C to +125°C) temperature ranges supported.
| Attribute | Value |
|---|---|
| RoHS | No |
| Product Type | ARINC 429 Data Management and Protocol Bridges |

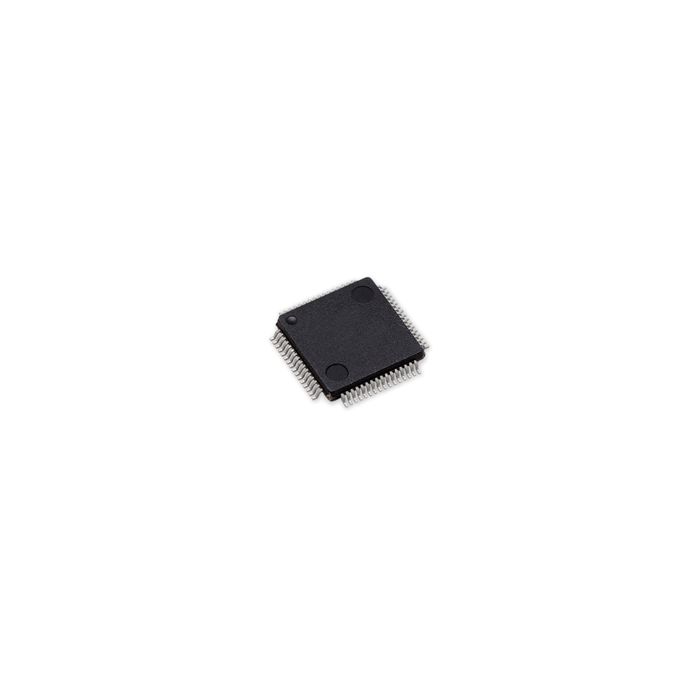

| Package Description | 64 Pin Plastic Quad Flat Pack (LQFP) |
| Moisture Sensitivity Level | 3.0000 |
| Product Longevity | > 10 years |
| Applications |
|
| Flow | I |
| Theta JA (°C/W): | 37.8 |
| Theta JB (°C/W): | 24.4 |
| Temperature Range | -40°C to +85°C |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
