HI-3200PQMF
HI-3200PQMF
Holt Integrated Circuits
HI-3200Series Avionics single chip CMOS data management IC
The HI-3200 / HI-3201 from Holt Integrated Circuits is a single chip CMOS data management IC capable of managing, storing and forwarding avionics data messages between eight ARINC 429 receive channels, four ARINC 429 transmit channels and a single CAN / ARINC 825 data bus.
HI-3200PQMF Specifications
Eight ARINC 429 Receive channels Four ARINC 429 Transmit channels ARINC 825 / CAN Bus interface 32KB On-chip user-configurable data storage memory Programmable received data filtering for ARINC 429 and ARINC 825 (CAN) buses Programmable Transmission schedulers for periodic ARINC 429 and ARINC 825 (CAN) message broadcasting Flexible protocol bridge for ARINC 429 to ARINC 825 (CAN) and ARINC 825 (CAN) to ARINC 425 Serial Peripheral Interface (SPI) (20MHz) Auto-initialization feature allows power-on configuration or independent operation without a CPU ARINC 429 Loopback self-test mode RAM Built-in self-test (BIST) Industrial (-40°C to +85°C) and Extended (-55°C to +125°C) temperature ranges supported. ]
More Information
Attribute
Value
RoHS
Yes
Product Type
ARINC 429 Data Management and Protocol Bridges
Package Description

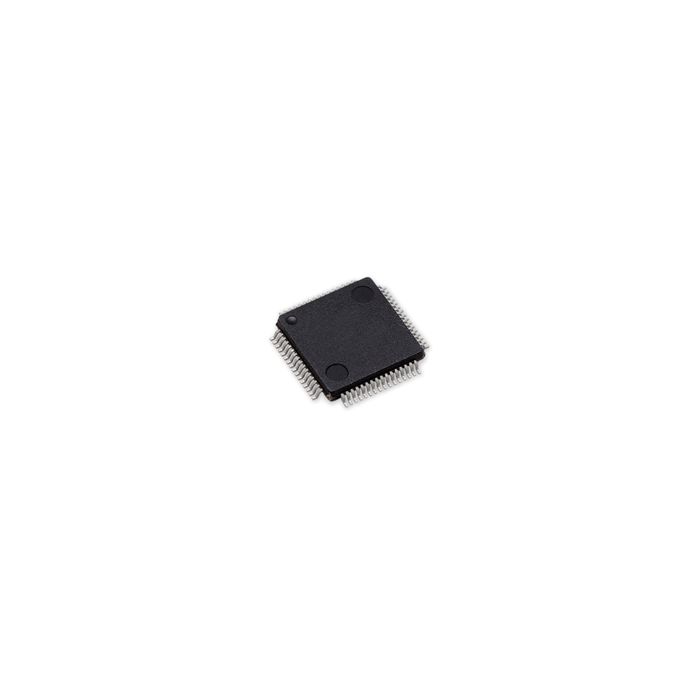

64 Pin Plastic Quad Flat Pack (LQFP)
Moisture Sensitivity Level
3.0000
Product Longevity
> 10 years
Applications
Avionics Data Management, Storage & forwarding ARINC 429 to ARINC 825 (CAN) Bridge CMOS/TTL to ARINC Level Conversion CMOS/TTL to RZ & NRZ Level Conversion
Flow
M
Theta JA (°C/W):
37.8
Theta JB (°C/W):
24.4
Temperature Range
-55°C to +125°C
