HI-3210PQI
HI-3210PQI
Holt Integrated Circuits
HI-3210 Series ARINC 429 Data Management and Protocol Bridge IC
The HI-3210 from Holt Integrated Circuits is a single chip CMOS data management IC capable of managing, storing and forwarding avionics data messages between eight ARINC 429 receive channels and four ARINC 429 transmit channels.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
HI-3210PQI Specifications
- Eight ARINC 429 Receive channels
- Four ARINC 429 Transmit channels
- 32KB on-chip user-configurable data storage memory
- Programmable received data filtering for ARINC 429 buses
- Programmable transmission schedulers for periodic ARINC 429 message broadcasting
- Serial Peripheral Interface (SPI) (20MHz)
- Auto-initialization feature allows power-on configuration or independent operation without a CPU
- ARINC 429 Loopback self-test mode
- RAM Built-in self-test (BIST)
- Industrial (-40°C to +85°C) and Extended (-55°C to +125°C) temperature ranges supported.
| Attribute | Value |
|---|---|
| RoHS | No |
| Product Type | ARINC 429 Data Management and Protocol Bridge ICs |

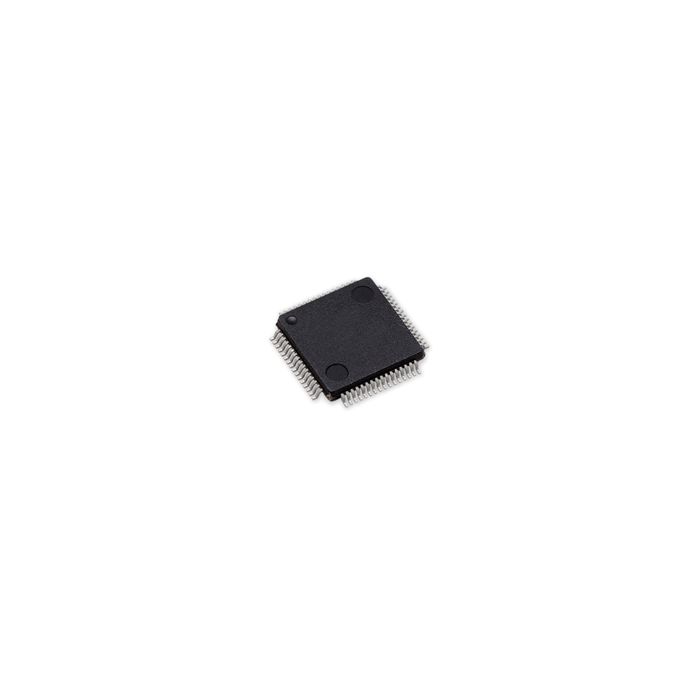

| Package Description | 64 Pin Plastic Quad Flat Pack (LQFP) |
| Moisture Sensitivity Level | 3.0000 |
| Product Longevity | > 10 years |
| Applications |
|
| Flow | I |
| Theta JA (°C/W): | 37.8 |
| Theta JB (°C/W): | 24.4 |
| Temperature Range | -40°C to +85°C |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
