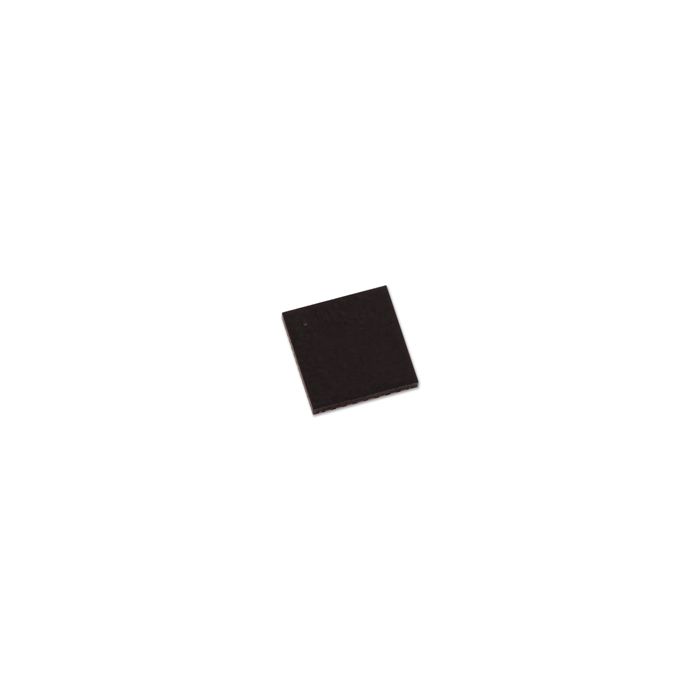

HI-3718PCIF
HI-3718PCIF
Holt Integrated Circuits
HI-3718 Series ARINC 717 Interface IC
The HI-3718 is a low-power CMOS transceiver designed to meet the requirements of the ARINC 717 and ARINC 429 specifications. The device acts as an interface between ARINC 717 or ARINC 429 digital protocols and the Harvard Bi-Phase (HBP) and/or Bi-Polar Return-to-Zero (BPRZ) encoded physical layers.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
HI-3718PCIF Specifications
- Compliant with ARINC 717 and ARINC 573 standards
- BPRZ line driver and line receiver are ARINC 429 compliant
- Operates from a single +3.3V supply with on-chip DC/DC converter
- Independent Harvard Bi-Phase and Bipolar Return-to-Zero line drivers with digital slew rate control: set rise/fall times to 1.5μs, 3.75μs, 7.5μs or 10μs
- Line drivers have independent tri-state control
- HBP and BPRZ line receivers have common inputs
- DC/DC converter may be disabled if external V+ and V- supplies are desired
- “-40” inputs allow for DO-160G level 3 lightning protection using only two external resistors
- Industrial and Extended temperature ranges
| Attribute | Value |
|---|---|
| RoHS | Yes |
| Product Type | ARINC 717 Interface ICs |
| Package Description | 32 Pin Plastic 7mm x 7 mm Chip-Scale Package (QFN) |
| Moisture Sensitivity Level | 3.0000 |
| Product Longevity | > 10 years |
| Applications |
|
| Flow | I |
| Theta JB (°C/W): | 14.0000 |
| Burn In | No |
| Temperature Range | -40°C to +85°C |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
