HI-4853CRT
HI-4853CRT
Holt Integrated Circuits
HI-4853 Series slew rate controlled 485/422 and ISO 8482 compliant transceiver IC
The HI-4853 is a slew-rate controlled TIA-485/TIA-422-B and ISO 8482:1993 compliant transceiver. The device can operate over an extended power-supply range (3.0V to 5.5V) and wide common mode voltage range (-15V to +20V). The HI-4853 has a half-duplex configuration, with slew rate optimized for data rates up to 20 Mbps. The driver slew-rate control and pre-emphesis reduces high-frequency components in the output signal transitions along with compensating for impedance mismatch. These features provide optimum EMI and jitter performance essential in EMI sensitive environments and high-integrity data link applications such as industrial automation.
Contact us for Lead Time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
HI-4853CRT Specifications
- Slew Rate Control and Pre-Emphasis for superior EMI
- Extended Power Supply Operating Range (3.0V - 5.5V)
- Extended Receiver Common-Mode Range
- -15V to +20V Half-Duplex
- +/-24V Full-Duplex
- ESD Protection:
- 16KV HBM (Bus Pins)
- 8KV HBM (Logic Pins)
- 20 Mbps Data Rate up to 100ft (CAT-5 UTP)
- 12 Mbps Data Rate up to 1000ft
- Input Impedance ≥ 1/7 UL Supporting 224 Nodes
- Guaranteed Fail-Safe Receiver Operation
- Thermal Shutdown and Current
- Extended Temperature Range (-55°C to +125°C)
- Industry Standard 75176 Pinout
| Attribute | Value |
|---|---|
| Product Type | RS-485 / 422 Data Bus IC |

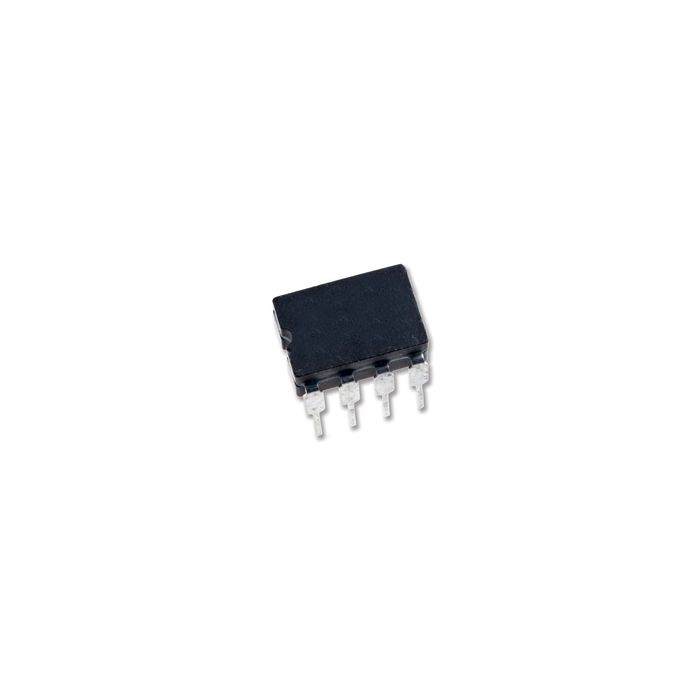

| Package Description | 8 Pin CerDIP |
| Product Longevity | > 10 years |
| Applications |
|
| Flow | T |
| Temperature Range | -55°C to +125°C |
| RoHS | No |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
