HI-6131PQTF
HI-6131PQTF
Holt Integrated Circuits
HI-6131 Series MIL-STD-1553 Integrated 3.3V multi-function interface IC
The 3.3V CMOS HI-613x device provides a complete single- or multi-function interface between a host processor and MIL-STD-1553B bus. Each IC contains a Bus Controller (BC), a Bus Monitor Terminal (MT) and two independent Remote Terminals (RTs). Any combination of the contained 1553 functions can be enabled for concurrent operation. The enabled terminals communicate with the MIL-STD-1553 buses through a shared on-chip dual bus transceiver and external transformer. The user allocates 64K bytes of on-chip static RAM between devices to suit application requirements.
Contact us for Lead Time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
HI-6131PQTF Specifications
- The HI-6130 uses a 16-bit parallel bus
- The HI-6131 communicates with the host via a 4-wire serial peripheral interface (SPI).
| Attribute | Value |
|---|---|
| Product Type | MIL-STD-1553 Integrated Terminal ICs |

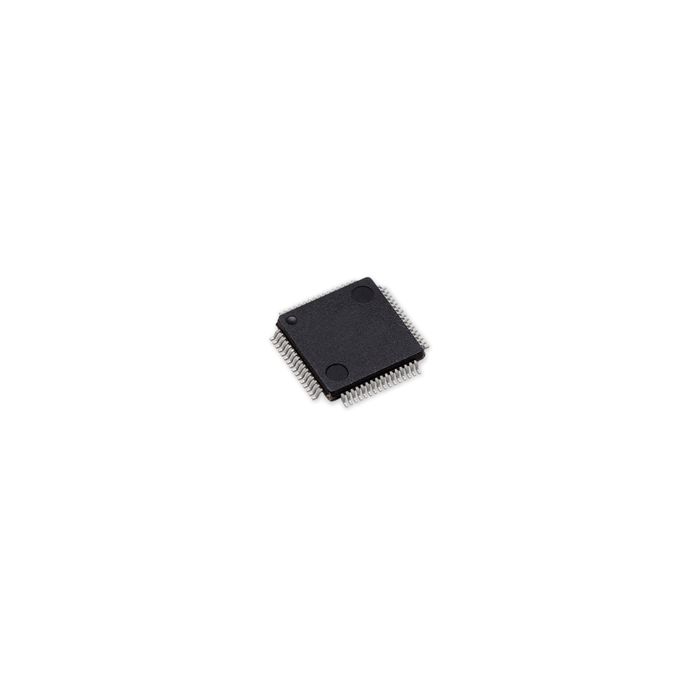

| Package Description | 64 Pin Plastic Quad Flat Pack (LQFP) |
| Moisture Sensitivity Level | 3.0000 |
| Product Longevity | > 10 years |
| Applications |
|
| Flow | T |
| Theta JA (°C/W): | 37.8 |
| Theta JB (°C/W): | 24.4 |
| Temperature Range | -55°C to +125°C |
| RoHS | Yes |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
