HI-6135PQIF
HI-6135PQIF
Holt Integrated Circuits
HI-6135 Series MIL-STD-1553 Integrated 3.3V remote terminal interface IC
The 3.3V CMOS HI-6135 device provides a complete Remote Terminal interface between a host processor and MIL-STD-1553B bus. The terminal communicates with the MIL-STD-1553 buses through an on-chip dual bus transceiver and external transformers. The user allocates 16K bytes (8K x 17-bit words) of on-chip static RAM to suit application requirements.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
HI-6135PQIF Specifications
- 8K x 17-bit words internal static RAM with parity.
- Autonomous terminal operation requires minimal host intervention.
- 40 MHz SPI Host Interface.
- MIL-STD-1760 option sets Busy bit in Status Word response during initialization.
- World’s smallest MIL-STD-1553 terminal, QFN package measures just 6mm x 6mm.
- 16-bit time tag counter and independent clock sources.
- 64-Word Interrupt Log Buffer queues the most recent 32 interrupts. Hardware-assisted interrupt decoding quickly identifies interrupt sources.
- Built-in self-test for protocol logic, digital signal paths and internal RAM.
- Optional self-initialization at reset uses external serial EEPROM
- ±8kV ESD Protection (HBM, all pins).
- Two temperature ranges: -40°C to +85°C, or -55°C to +125°C with optional burn-in.
- RoHS compliant and Tin / Lead options available.
| Attribute | Value |
|---|---|
| RoHS | Yes |
| Product Type | MIL-STD-1553 Integrated Terminal ICs |

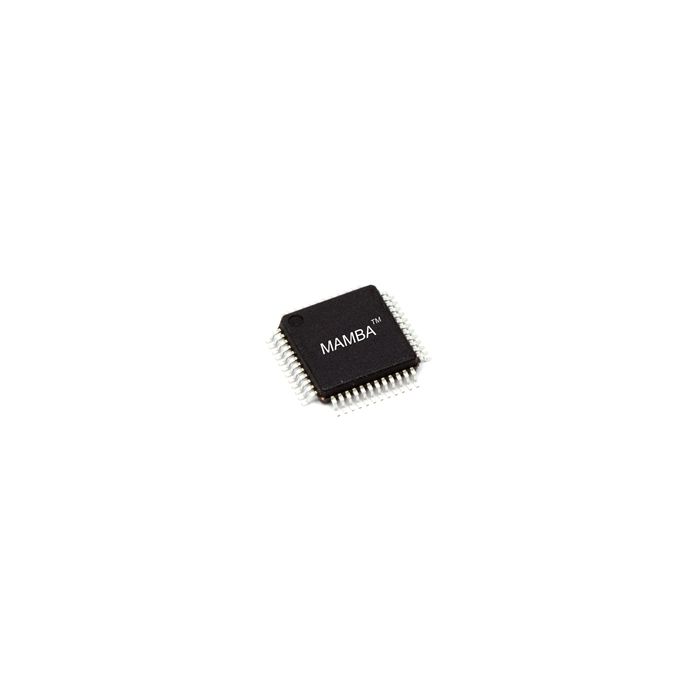

| Package Description | 48 Pin Plastic Quad Flat Pack (LQFP) |
| Moisture Sensitivity Level | 3.0000 |
| Product Longevity | > 10 years |
| Applications |
|
| Flow | I |
| Theta JA (°C/W): | 37.9 |
| Theta JB (°C/W): | 24.6 |
| Temperature Range | -40°C to +85°C |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
