HI-8448PCIF
HI-8448PCIF
Holt Integrated Circuits
HI-8448 Series ARINC 429 Line Receiver
The HI-8448 is an octal ARINC 429 Line receiver IC available in a 44-pin plastic Quad Flat Package (PQFP). Each independent receiver channel translates incoming ARINC 429 data bus signals to an associated pair of CMOS/TTL outputs. Using low-power analog/digital CMOS technology, the line receivers will operate from either a 3.3V or 5V supply. Each ARINC input is internally protected to meet the lightning protection requirements of DO-160C/D Level 3, waveforms 3, 4 & 5A. The HI-8448 has inputs (TESTA & TESTB) that bypass the analog circuitry for testing purposes. They force the receiver outputs to the specified ZERO, ONE or state. The ARINC inputs are ignored when the device is in the test mode.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
HI-8448PCIF Specifications
- Four ARINC 429 line receivers
- 3.3V or 5.0V single supply operation
- Test inputs bypass analog inputs and force digital outputs to ZERO, ONE or states
- Low-power CMOS technology
- CMOS/TTL compatible outputs
- ARINC inputs internally lightning protected per DO-160D level 3
- 44-pin plastic PQFP package
- Industrial & extended temperature ranges available
| Attribute | Value |
|---|---|
| RoHS | Yes |
| Product Type | ARINC 429 Line Receivers |

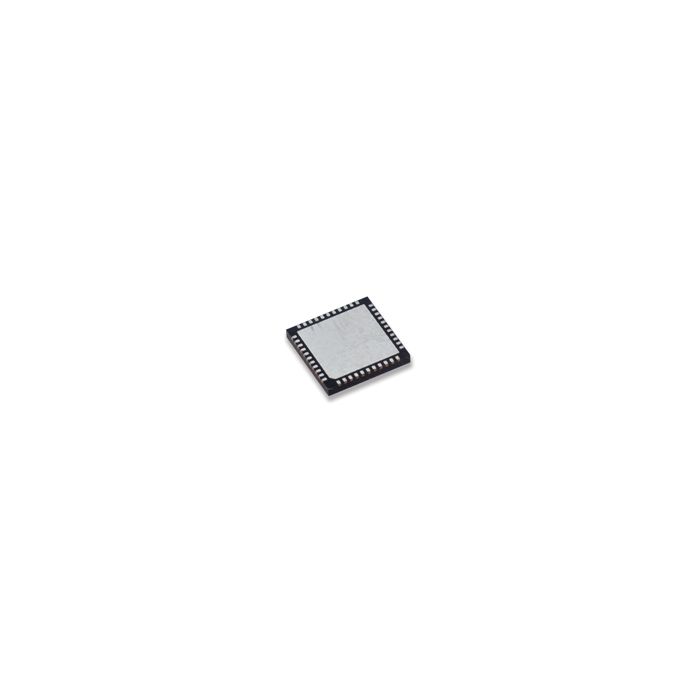

| Package Description | 44 Pin Plastic 7mm x 7mm Chip-Scale Package (QFN) |
| Moisture Sensitivity Level | 3.0000 |
| Product Longevity | > 10 years |
| Applications |
|
| Flow | I |
| Theta JA (°C/W): | 31.4 |
| Theta JB (°C/W): | 16.4 |
| Temperature Range | -40°C to +85°C |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
