HI-8458PCM
HI-8458PCM
Holt Integrated Circuits
HI-8458 Series ARINC 429 Line Receiver
Holt’s family of octal ARINC 429 line receivers, HI-8456, HI-8457 and HI-8458 include internal lightning protection circuitry which ensures compliance with RTCA/DO-160G, Section 22 Level 3 Pin Injection Test Waveform Set A (3 & 4), Set B (3 & 5A) and Set Z (3 & 5B) without the use of any external components. Each device contains 8 independent ARINC 429 line receivers.
Contact us for Lead Time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
HI-8458PCM Specifications
- Internal lightning protection circuitry ensures compliance with RTCA/DO-160G, Section 22 Level 3 Pin Injection Test Waveform Set A (3 & 4), Set B (3 & 5A) and Set Z (3 & 5B)
- Direct connection to ARINC 429 bus with no external components
- High input common mode voltage range of ±30V
- Non-annunciated fault protection; a receiver will reject a signal when either bus line is open or shorted to ground.
- Eight independent ARINC 429 line receivers
- 3.3V or 5.0V single supply operation
- Test inputs bypass analog inputs and force digital outputs to ZERO, ONE or states (not available on HI-8457)
- Industrial & extended temperature ranges
- Burn-in available
| Attribute | Value |
|---|---|
| Product Type | ARINC 429 Line Receivers |

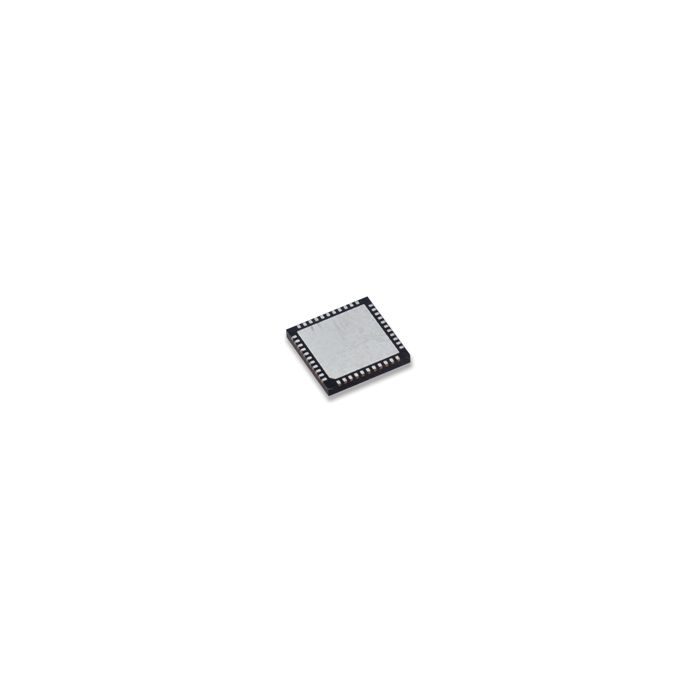

| Package Description | 44 Pin Plastic 7mm x 7mm Chip-Scale Package (QFN) |
| Moisture Sensitivity Level | 3 |
| Product Longevity | > 10 years |
| Applications |
|
| Flow | M |
| Theta JA (°C/W): | 31.4 |
| Theta JB (°C/W): | 16.4 |
| Temperature Range | -55°C to +125°C |
| RoHS | No |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
