HI-8461PSIF
HI-8461PSIF
Holt Integrated Circuits
HI-8461 Series ARINC 429 Line Receiver
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
HI-8461PSIF Specifications
- 800V galvanic isolation between the line receiver and logic interface exceeds Airbus ABD0100 specification requirement
- Drop-in compatible with Holt HI-8450/51, HI-8588 and HI-8591
- Internal lightning protection circuitry ensures compliance with RTCA/DO-160G, Section 22 Level 3 Pin Injection Test Waveform Set A (3 & 4), Set B (3 & 5A) and Set Z (3 & 5B)
- Direct connection to ARINC 429 bus with no external components
- 3.3V single supply operation
- Test inputs bypass analog inputs and force digital outputs to a One, Zero, or state
- Industrial and Extended temperature ranges
- Burn-in available
| Attribute | Value |
|---|---|
| RoHS | Yes |
| Product Type | ARINC 429 Line Receivers |

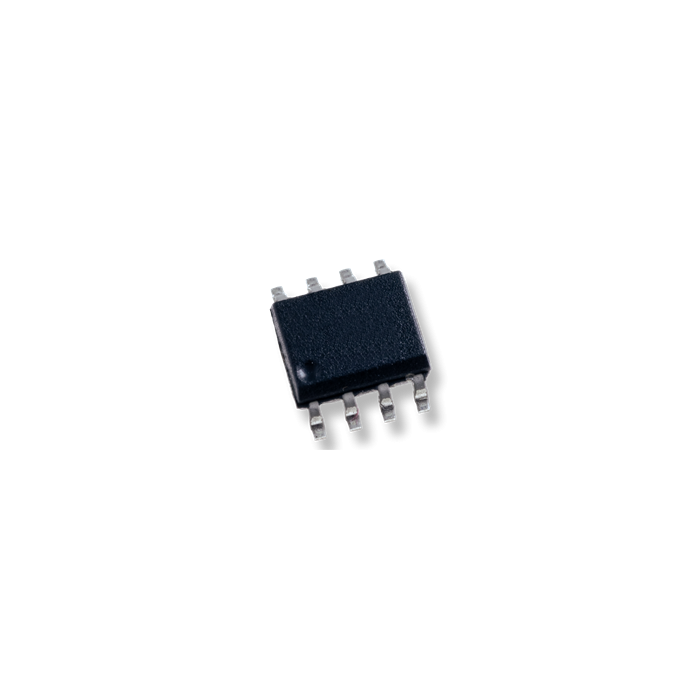

| Package Description | 8 Pin Plastic SOIC - NB |
| Moisture Sensitivity Level | 1.0000 |
| Product Longevity | > 10 years |
| Applications |
|
| Flow | I |
| Theta JA (°C/W): | 81.6 |
| Theta JB (°C/W): | 50.3 |
| Temperature Range | -40°C to +85°C |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
