HI-8478PQIF
HI-8478PQIF
Holt Integrated Circuits
HI-8478 Series ARINC 429 Line Receiver
The HI-8477 / HI-8478 are ARINC 429 Receivers designed specifically for use without a microprocessor. All configuration and control is programmed via logic level input pins, eliminating the need for a microprocessor or software interface and greatly reducing or eliminating the cost associated with software certification.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
HI-8478PQIF Specifications
- Pin programmable - requires no MCU or software control
- No need for certification to RTCA DO-178B, “Software Considerations in Airborne Systems and Equipment
- Robust CMOS Silicon-on-Insulator (SOI) technology
- On-chip ARINC 429 Line Receiver
- 3.3 V or 5.0V single supply operation
- Maskable Label Filtering for single label or groups of labels
- Internal lightning protection circuitry for receiver inputs allows compliance with RTCA/DO-160G, Section 22 Level 3 Pin Injection Tests using only two external resistors
- HI-8478 option provides the compliment of HI-8477 digital outputs from the 32-bit ARINC 429 word.
- Certifiable to RTCA DO-254, “Design Assurance for Airborne Electronic Hardware”
| Attribute | Value |
|---|---|
| RoHS | Yes |
| Product Type | ARINC 429 Line Receivers |

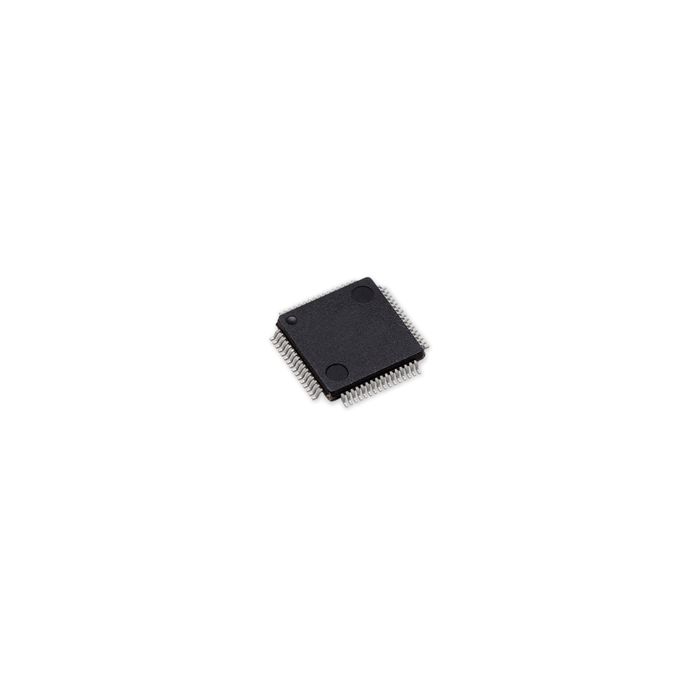

| Package Description | 64 Pin Plastic Thin Quad Flat Pack (TQFP) |
| Moisture Sensitivity Level | 3.0000 |
| Product Longevity | > 10 years |
| Applications |
|
| Flow | I |
| Temperature Range | -40°C to +85°C |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
