HI-8585PSTF
HI-8585PSTF
Holt Integrated Circuits
HI-8585 Series Line Driver
The HI-8585 and HI-8586 are CMOS integrated circuits designed to directly drive the ARINC 429 bus in an 8 pin package. Two logic inputs control a differential voltage between the output pins producing a +10 volt One, a -10 volt Zero, and a 0 volt .
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
HI-8585PSTF Specifications
- Direct ARINC 429 Line Driver Interface in a Small Package
- On-chip Line Driver Slope Control and Selection by Logic Input
- Low Current 12 to 15 Volt Supplies
- CMOS / TTL Logic Pins
- Plastic and Ceramic Package Options - Surface Mount and DIP
- Thermally Enhanced SOIC Packages
- Industrial & Extended Temperature Ranges Available
| Attribute | Value |
|---|---|
| RoHS | Yes |
| Product Type | ARINC_429_Line_Drivers |

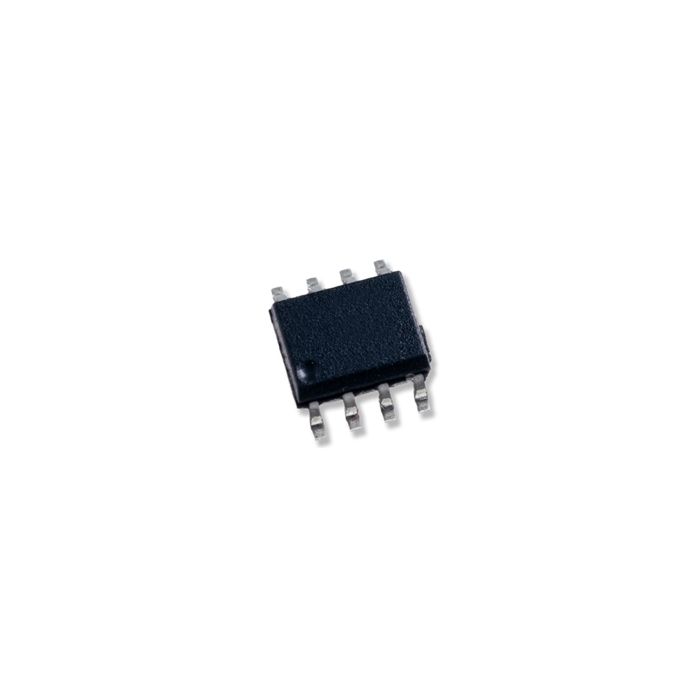

| Package Description | 8 Pin Plastic ESOIC - NB |
| Moisture Sensitivity Level | 1.0000 |
| Applications |
|
| Flow | T |
| Theta JA (°C/W): | 44.0000 |
| Theta JB (°C/W): | 24.3 |
| Temperature Range | -55°C to +125°C |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
