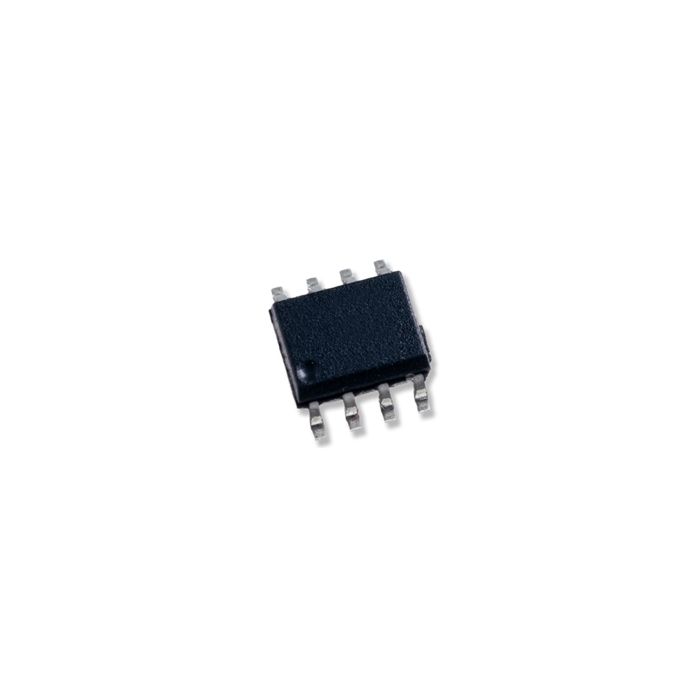

HI-8588PSI
HI-8588PSI
Holt Integrated Circuits
HI-8588 Series ARINC 429 Line Receiver
The HI-8588 is an ARINC 429 bus interface receiver and is available in a SO 8 pin package. The technology is analog/digital CMOS. The circuitry requires only a 5 volt supply.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
HI-8588PSI Specifications
- ARINC 429 Line Receiver Interface in a Small Outline Package
- Receiver Input Hysteresis at Least 2 Volts
- Test Inputs That Bypass Analog Input and Can Power Down and Tri-State Outputs
- Plastic and Ceramic Package Options - Surface Mount and DIP
- Industrial & Extended Temperature Ranges Available
| Attribute | Value |
|---|---|
| RoHS | No |
| Product Type | ARINC 429 Line Receivers |
| Package Description | 8 Pin Plastic SOIC - NB |
| Moisture Sensitivity Level | 1.0000 |
| Product Longevity | > 10 years |
| Applications |
|
| Flow | I |
| Theta JA (°C/W): | 81.6 |
| Theta JB (°C/W): | 50.3 |
| Temperature Range | -40°C to +85°C |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
