HI-8591PSTF-40
HI-8591PSTF-40
Holt Integrated Circuits
HI-8591 Series ARINC 429 Line Receiver
The HI-8591 is a single ARINC 429 line receiver available in both 8-pin SOIC and 12-pin LPCC (chip-scale) packages. The product, designed with analog/digital CMOS technology, requires only a single 3.3V or 5V supply. In addition, the test inputs force both of the outputs to zero.
Contact us for Lead Time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
HI-8591PSTF-40 Specifications
- ARINC 429 Line Receiver Interface in a Small Outline and Chip-scale packages
- 3.3V or 5V Single Rail Supply Voltage
- ±30V Common-mode Performance
- >140 KOhm Input Impedance
- Lightning Protection Simplified With the Ability to Add 40 Kohm External Series Resistors (-40 only)
- Receiver Input Hysteresis at Least 2 Volts
- Test Inputs Bypass Analog Inputs and Force Digital Outputs to a One, Zero or State
- Industrial & Extended Temperature Ranges Available
- Plastic and Ceramic Package Options - Surface Mount and DIP
| Attribute | Value |
|---|---|
| Product Type | ARINC 429 Line Receivers |

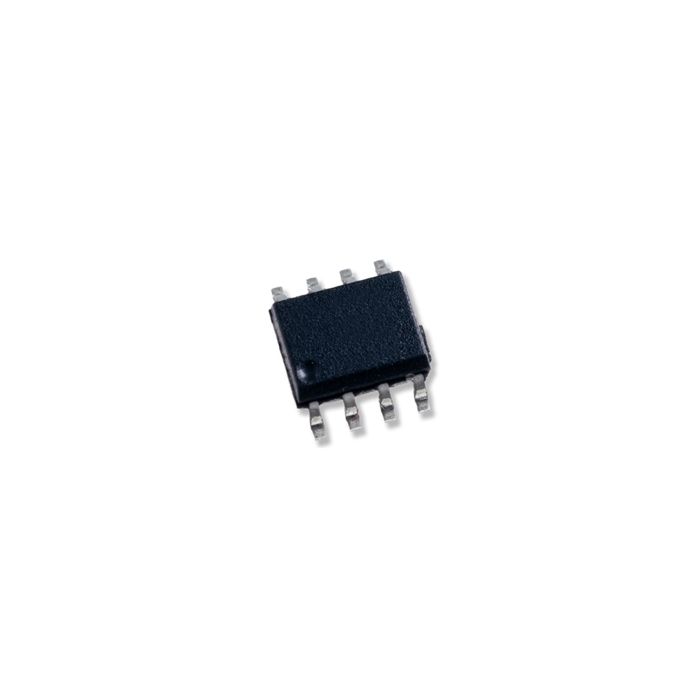

| Package Description | 8 Pin Plastic SOIC - NB |
| Moisture Sensitivity Level | 1 |
| Product Longevity | > 10 years |
| Applications |
|
| Flow | T |
| Theta JA (°C/W): | 81.6 |
| Theta JB (°C/W): | 50.3 |
| Temperature Range | -55°C to +125°C |
| RoHS | Yes |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
