HI-8592PSMF
HI-8592PSMF
Holt Integrated Circuits
HI-8592 Series Line Driver
The HI-8592 bus interface product is a silicon gate CMOS device designed as a line driver in accordance with the ARINC 429 bus specifications. The part includes a negative voltage converter allowing it to operate from a single +5V supply using only two external capacitors. The part also features high-impedance outputs (tri-state) when both data inputs are taken high, allowing multiple line drivers to be connected to a common bus.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
HI-8592PSMF Specifications
- +5V Single Rail Supply Voltage
- Negative voltage generated on-chip
- Digitally selectable rise and fall times
- Tri-state Outputs
- 5 Ohm or 37.5 Ohm output resistance
- Built-in 2,000V minimum ESD Protection of Logic Inputs
- 5V or 3.3V Logic Level Compatibility
- Plastic 8 & 14-pin thermally enhanced SOIC packages available
- Lead-free / RoHS Compliant options available
- Industrial & Extended Temperature Ranges
- Burn-in Available
| Attribute | Value |
|---|---|
| RoHS | Yes |
| Product Type | ARINC_429_Line_Drivers |

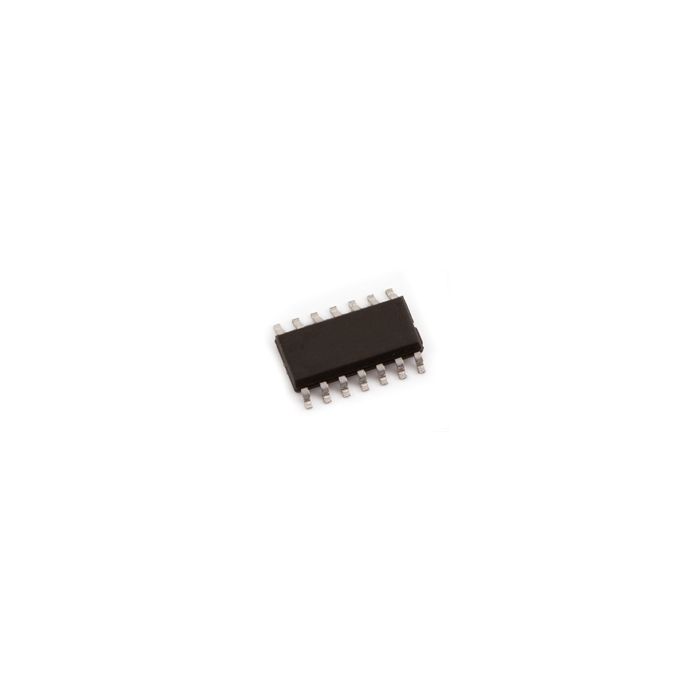

| Package Description | 14 Pin Plastic ESOIC - NB |
| Moisture Sensitivity Level | 1.0000 |
| Applications |
|
| Flow | M |
| Theta JA (°C/W): | 31.39 |
| Temperature Range | -55°C to +125°C |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
