HI-8598PSTF
HI-8598PSTF
Holt Integrated Circuits
HI-8598 Series Line Driver

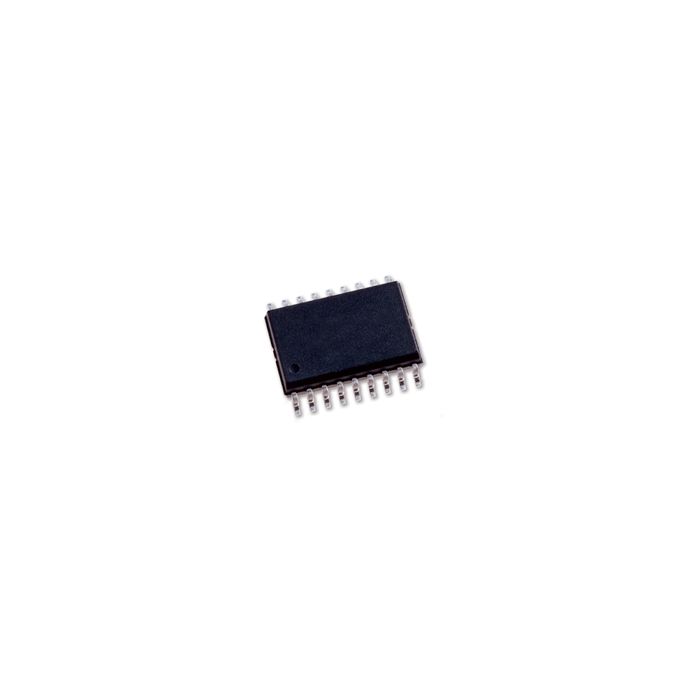

The HI-8598 is the world’s first galvanically isolated ARINC 429 line driver, available in a compact 18-pin SOIC plastic package. The device uses a patented capacitive isolation and power regulation to provide 800V galvanic isolation between the analog line driver and the logic interface, ensuring isolation between the ARINC 429 data bus and sensitive digital circuitry. This device is intended for use in safety critical systems, where it is essential to completely isolate any faults on the bus from mission critical electronics, making the HI-8598 a good choice for systems that will ultimately require FAA or EASA DO-254 DAL A certification.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
HI-8598PSTF Specifications
- Airbus ABD0100H specification compliant
- Galvanically isolated ARINC 429 line driver providing 800V isolation between the analog line driver and the logic interface
| Attribute | Value |
|---|---|
| RoHS | Yes |
| Product Type | ARINC_429_Line_Drivers |
| Package Description | 18 Pin Plastic SOIC - WB |
| Moisture Sensitivity Level | 1.0000 |
| Applications |
|
| Flow | T |
| Theta JA (°C/W): | 26.16 |
| Theta JB (°C/W): | 15.07 |
| Burn In | No |
| Temperature Range | -55°C to +125°C |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
