Hummel 1.192.3200.50
1.192.3200.50PROMO
Hummel

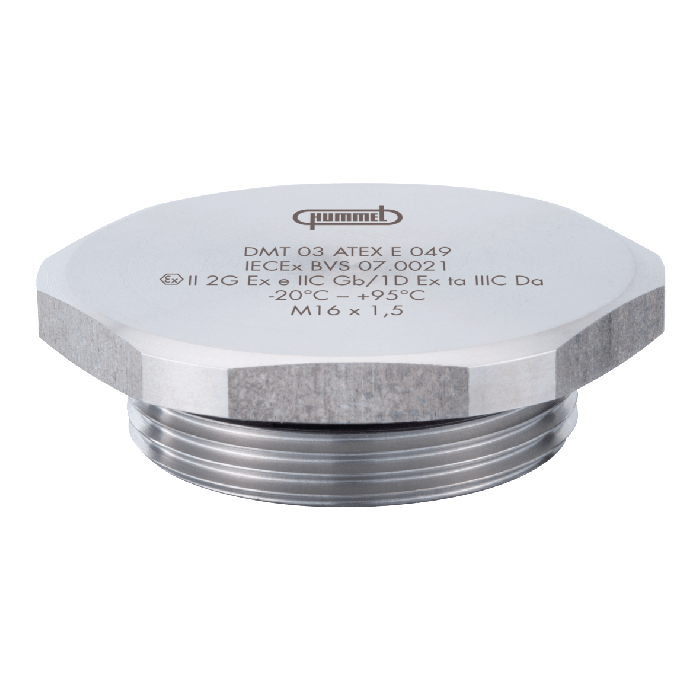

Plug made of stainless steel with thread for hazardous areas
Plug made of stainless steel with thread for hazardous areas from Hummel. Metric. Protection class IP 68 – 10 bar, IP 69 K - -20°C to +95°C
In stock
| Attribute | Value |
|---|---|
| Product Brand Name | 1192320050 |
| Manufacturer | Hummel |
| Weight (kg) | 0.00488 |
| Customs tariff number | 73181575 |
| EAN code | 4033878408070 |
| ETIM 7 | EC000032 |
| Packaging Unit | 5 |
| Height (mm) | 12.5 |
| Certificates | ATEX, EAC, INMETRO, IECEx, CE, DNV-GL |
| Version | short |
| External thread (AG) | M32 x 1.5 |
| Material seals / O-rings | NBR |
| Protection class | IP 68 – 10 bar, IP 69 K |
| Material | INOX 1.4305 |
| Thread length (mm) | 8 |
| Tightening torque [Nm] | 15 |
| Wrench size 1 (SW1) [mm] | 41 |
| Wrench size (SW) [mm] | 41 |
| Ex-protection level | II 1D Ex ta IIIC Da, II 2G Ex e IIC Gb |
| Temperature Range | -20°C to +95°C |
| RoHS | RoHS |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
