Hummel 1.609.1600.51
1.609.1600.51PROMO
Hummel

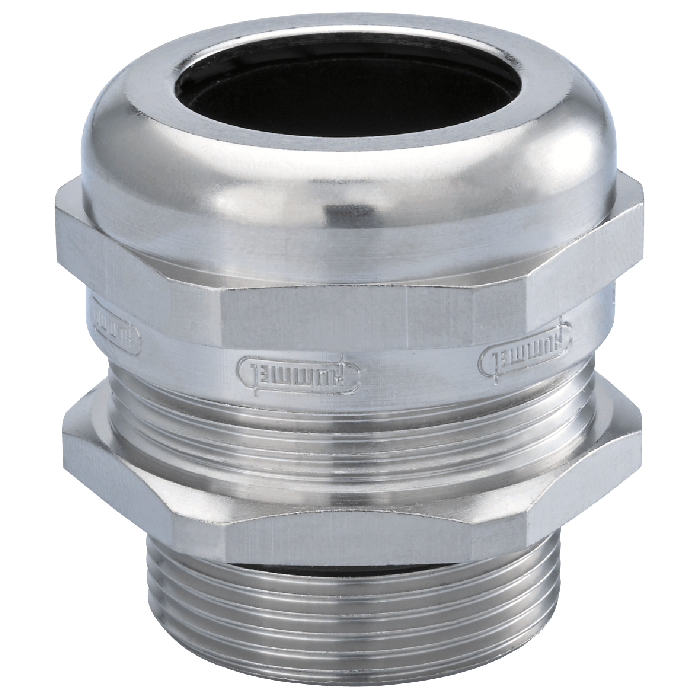

Cable gland made of brass
Cable gland made of brass Protection class - IP 68 – 10 bar, IP 69 K. Version - short. Seal - NBR
In stock
| Attribute | Value |
|---|---|
| Product Brand Name | 1609160051 |
| Video URL | https://youtu.be/TL8yBdE8RXU |
| Weight (kg) | 0.01907 |
| Further information | Other sealing material e.g. Silicone upon request, Leadfree versions available in sizes M12 to M63. More information here |
| Customs tariff number | 74199990 |
| EAN code | 4033878429556 |
| ETIM 7 | EC000441 |
| Packaging Unit | 50 |
| Height (mm) | 21 |
| Certificates | DNV-GL, UR, CSA, VDE, CE, Bahnzulassung, cUR |
| Version | short |
| External thread (AG) | M16 x 1,5 |
| Material seals / O-rings | NBR |
| Cable diameter (mm) | 2 – 6 |
| Wrench size SW1 / SW2 (mm) | 17/19 |
| Protection class | IP 68 – 10 bar, IP 69 K |
| Material | Nickel-plated brass |
| Seal | NBR |
| Thread length (mm) | 6 |
| Variant | Metric |
| Tightening torque [Nm] | 6 |
| Wrench size 1 (SW1) [mm] | 17 |
| Wrench size (SW) [mm] | 19 |
| Clamping insert | Polyamide V0 according to UL 94 |
| NEMA type rating | 4, 4X, 6 |
| Norms | RoHS |
| Temperature Range | -40°C to +100°C |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
