Hummel 1.611.2016.50
1.611.2016.50PROMO
Hummel

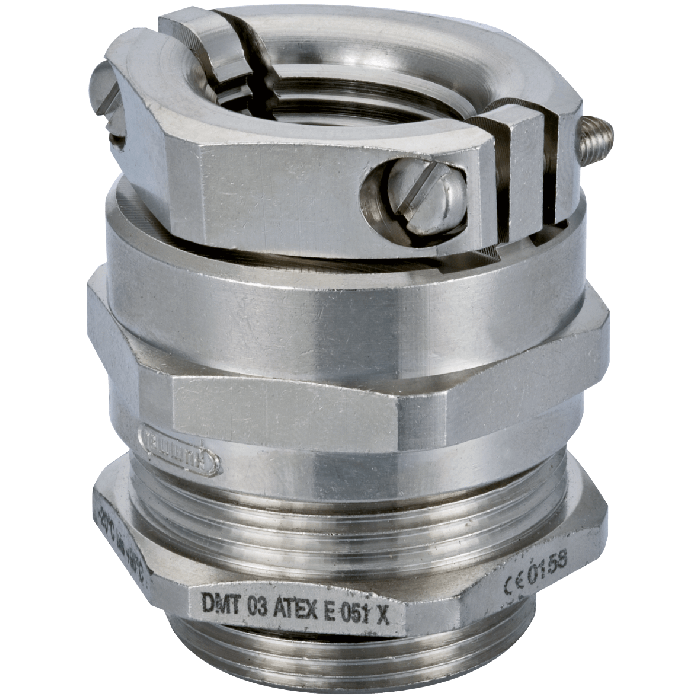

Cable gland made of brass with strain relief for hazardous areas
Cable gland made of brass with strain relief for hazardous areas Protection class - IP 68 – 10 bar, IP 69 K. Version - short. Seal - NBR
Buy Online
| Attribute | Value |
|---|---|
| Product Brand Name | 1611201650 |
| Weight (kg) | 0.05058 |
| Customs tariff number | 74199990 |
| EAN code | 4033878431139 |
| ETIM 7 | EC000441 |
| Packaging Unit | 50 |
| Height (mm) | 33 |
| Certificates | ATEX, EAC, INMETRO, IECEx, CSA, DNV-GL, CE, UL, cUL, cCSAus |
| Version | short |
| External thread (AG) | M20 x 1,5 |
| Material seals / O-rings | NBR |
| Cable diameter (mm) | 10 – 14 |
| Wrench size SW1 / SW2 (mm) | 24/24 |
| Protection class | IP 68 – 10 bar, IP 69 K |
| Material | Nickel-plated brass |
| Seal | NBR |
| Thread length (mm) | 6 |
| Variant | Metric |
| Tightening torque [Nm] | 10 |
| Wrench size 1 (SW1) [mm] | 24 |
| Wrench size (SW) [mm] | 24 |
| Ex-protection level | II 1D Ex ta IIIC Da, II 2G Ex eb IIC Gb |
| Clamping insert | Polyamide V0 according to UL 94 |
| NEMA type rating | 4, 4X, 6 |
| Norms | RoHS |
| Temperature Range | -20°C to +95°C |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
