Hummel 1.691.3200.52
1.691.3200.52PROMO
Hummel

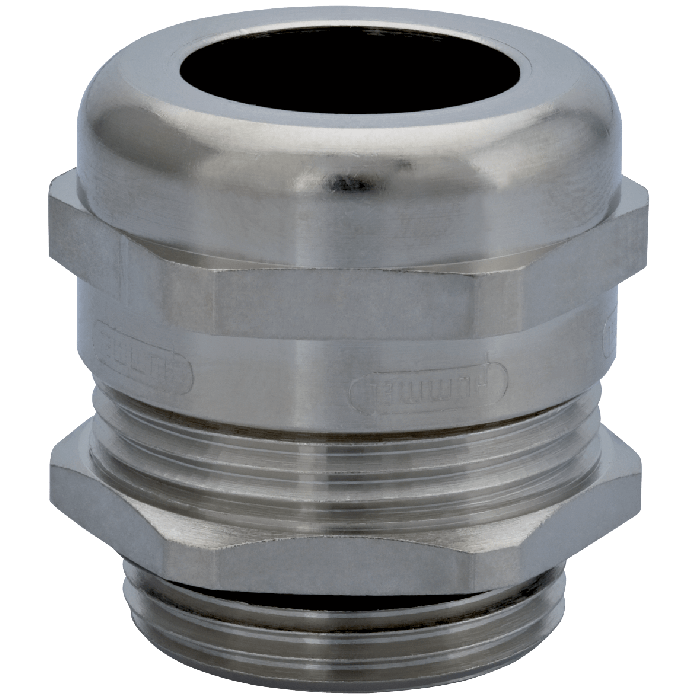

Cable gland made of brass with EMC protection
Cable gland made of brass with EMC protection Protection class - IP 68 – 10 bar, IP 69 K. Version - short. Seal - NBR
Buy Online
| Attribute | Value |
|---|---|
| Product Brand Name | 1691320052 |
| Video URL | https://youtu.be/9kLmHqsxKFo, https://youtu.be/TL8yBdE8RXU |
| Weight (kg) | 0.10746 |
| Further information | Other sealing material e.g. Silicone upon request |
| Customs tariff number | 85369010 |
| EAN code | 4033878441626 |
| ETIM 7 | EC000441 |
| Packaging Unit | 25 |
| Height (mm) | 33 |
| Certificates | CE, VDE, UL, CSA, DNV-GL, Bahnzulassung, cUL |
| Version | short |
| External thread (AG) | M32 x 1,5 |
| Material seals / O-rings | NBR |
| Cable diameter (mm) | 15 – 21 |
| Wrench size SW1 / SW2 (mm) | 36/36 |
| Protection class | IP 68 – 10 bar, IP 69 K |
| Material | Nickel-plated brass |
| Seal | NBR |
| Thread length (mm) | 8 |
| Variant | Metric |
| Tightening torque [Nm] | 15 |
| Wrench size 1 (SW1) [mm] | 36 |
| Wrench size (SW) [mm] | 36 |
| Clamping insert | Polyamide V0 according to UL 94 |
| NEMA type rating | 4, 4X, 6 |
| Norms | RoHS, EMV |
| Temperature Range | -40°C to +100°C |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
