Hummel 1.699.2000.31
1.699.2000.31PROMO
Hummel

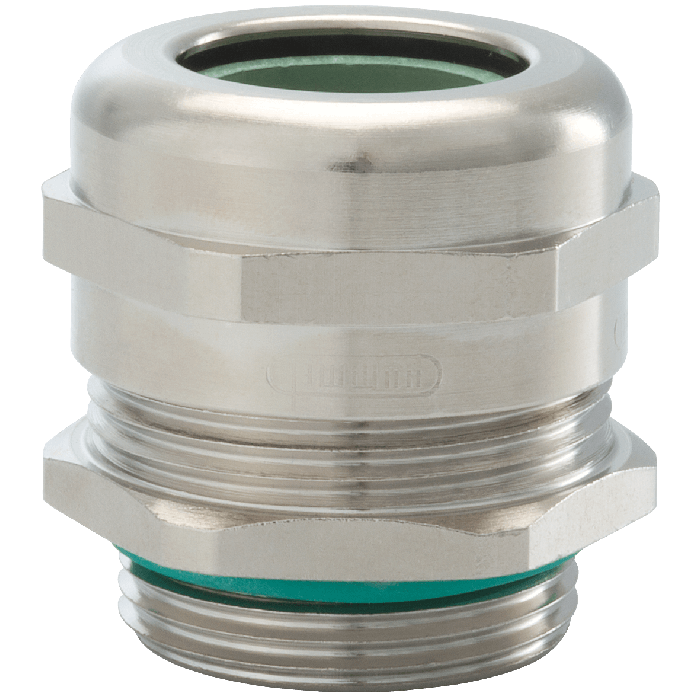

Cable gland made of brass
Cable gland made of brass Protection class - IP 68 – 10 bar, IP 69 K. Version - long. Seal - FKM
In stock
| Attribute | Value |
|---|---|
| Product Brand Name | 1699200031 |
| Video URL | https://youtu.be/TL8yBdE8RXU |
| Weight (kg) | 0.03471 |
| Further information | Other sealing material e.g. Silicone upon request |
| Customs tariff number | 74199990 |
| EAN code | 4033878444023 |
| ETIM 7 | EC000441 |
| Packaging Unit | 50 |
| Height (mm) | 23 |
| Certificates | UL, CSA, DNV-GL, cUL, CE |
| Version | long |
| External thread (AG) | M20 x 1,5 |
| Material seals / O-rings | FKM |
| Cable diameter (mm) | 5 – 9 |
| Wrench size SW1 / SW2 (mm) | 22/22 |
| Protection class | IP 68 – 10 bar, IP 69 K |
| Material | Nickel-plated brass |
| Seal | FKM |
| Thread length (mm) | 10 |
| Variant | Metric-long |
| Tightening torque [Nm] | 8 |
| Wrench size 1 (SW1) [mm] | 22 |
| Wrench size (SW) [mm] | 22 |
| Clamping insert | PVDF |
| NEMA type rating | 4, 4X, 6 |
| Norms | RoHS |
| Temperature Range | -35°C to +150°C |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
