Hummel 1.740.1602.50
1.740.1602.50PROMO
Hummel

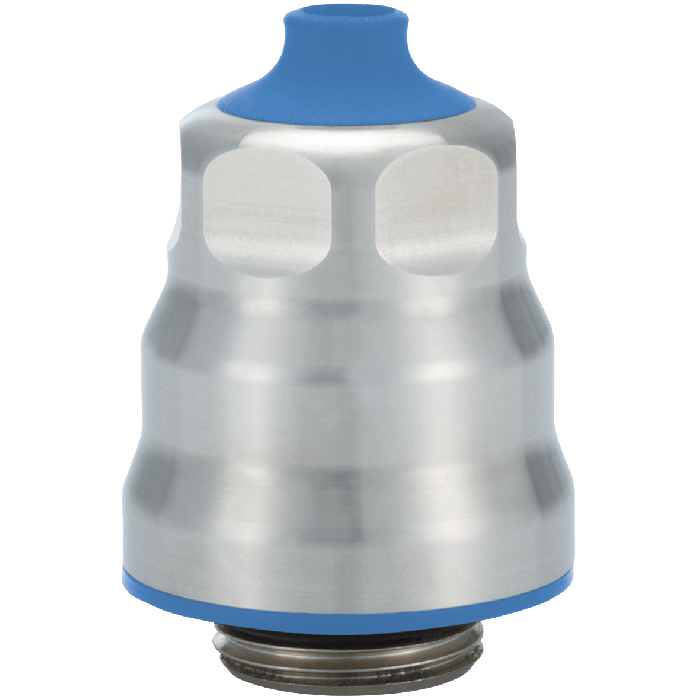

Cable gland made of stainless steel for hygienic requirements
Cable gland made of stainless steel for hygienic requirements Protection class - IP 68. Version - short. Seal - HD-enclosure: VMQ (silicone), blue (similar RAL 5017)
Buy Online
| Attribute | Value |
|---|---|
| Product Brand Name | 1740160250 |
| Video URL | https://youtu.be/JnXeyhWXdCo |
| Weight (kg) | 0.06473 |
| Further information | EMC integrated, VDMA Riboflavin cleaning test fulfilled and passed, Durability and cleanability tested and passed with compounds from ECOLAB |
| Customs tariff number | 73269098 |
| EAN code | 4033878444658 |
| ETIM 7 | EC000441 |
| Packaging Unit | 10 |
| Height (mm) | 34 |
| Certificates | ECOLAB, CE |
| Version | short |
| External thread (AG) | M16 x 1,5 |
| Cable diameter (mm) | 5 – 10 |
| Wrench size SW1 / SW2 (mm) | 18/20 |
| Protection class | IP 68 |
| Material | INOX 1.4404 |
| Seal | HD-enclosure: VMQ (silicone), blue (similar RAL 5017) |
| Thread length (mm) | 6 |
| Variant | Metric |
| Tightening torque [Nm] | 5 |
| Wrench size 1 (SW1) [mm] | 18 |
| Wrench size (SW) [mm] | 20 |
| d (mm) | 9.3 |
| Norms | EMV |
| Temperature Range | -40°C to +120°C |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
