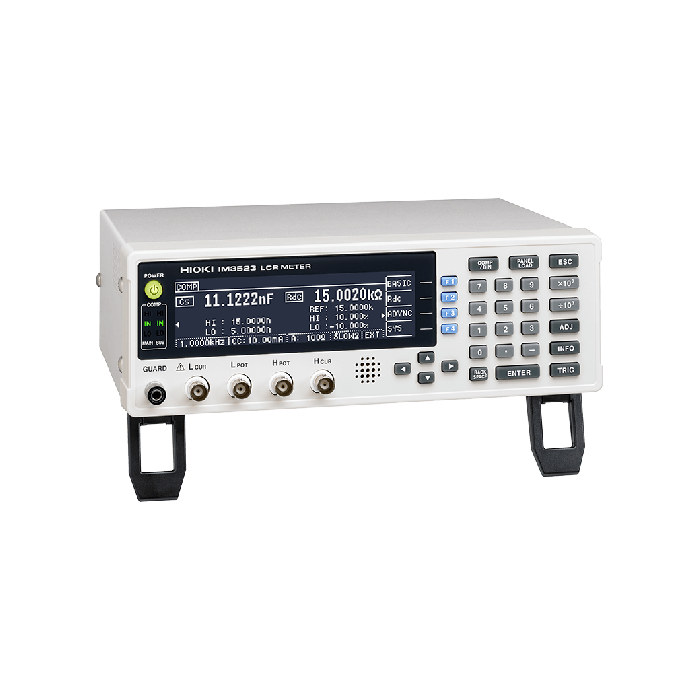

Hioki IM3523 LCR Meter | APC Technology Group

IM3523

IM3523

Hioki

LCR Meter

Ideal for Production Lines of Electronic Parts and Automated Testing

Hioki LCR Meters and Impedance Analysers range from 1 mHz to 3 GHz devices to suit a wide range of applications in the testing of electronic components. The IM3523 is designed for basic measurement on production lines so that it can be offered at a low price point, and delivers improved measurement reliability thanks to its contact check function.


Key Features

  • ±0.05% accuracy with wide measurement range (DC, 40Hz to 200kHz, 5mV to 5V, 10uA to 50mA)
  • Rapid 2 msec test time
  • Built-in comparator and BIN functions
  • Non-stop testing over mixed measurement conditions such as C-D(120 Hz) and ESR (100 kHz) at 10 times the speed of previous models (compared with Model 3532-50)
Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

More Information
Attribute Value
Power Supply 100 to 240 V AC, 50/60 Hz, 50 VA max
Included Accessories Power cord × 1 , Instruction manual × 1, CD-R (Includes PC commands and sample software) × 1
Display Monochrome LCD
Measurable Range 100 mΩ to 100 MΩ, 10 ranges (All parameters defined in terms of Z.)
Functions Comparator, BIN measurement (classify function), Panel loading/saving, Memory function
Dimensions and Weight 260 mm (10.24 in) W × 88 mm (3.46 in) H × 203 mm (7.99 in) D, 2.4 kg (84.7 oz)
Basic Accuracy Z : ±0.05% rdg. θ: ±0.03°
Measurement Parameters Z, Y, θ, X, G, B, Q, Rdc (DC resistance), Rs (ESR), Rp, Ls, Lp, Cs, Cp, D (tanδ)
Measurement Speed 2 ms (1 kHz, FAST, representative value)
Measurement Modes LCR (Measurement with single condition), Continuous testing (Continuous measurement under saved conditions)
Display Range

Z, Y, Rs, Rp, Rdc, X, G, B, Ls, Lp, Cs, Cp :
± (0.00000 [unit] to 9.99999G [unit]) Real value display for Z and Y only
θ: ± (0.000° to 180.000°), D: ± (0.00000 to 9.99999)
Q: ± (0.00 to 99999.9), Δ%: ± (0.0000% to 999.999%)

Measurement Frequency 40 Hz to 200 kHz (5 digits setting resolution)
Measurement Signal Level

V mode, CV mode: 5 mV to 5 Vrms, 1 mVrms steps
CC mode: 10 μA to 50 mArms, 10 μArms steps

Output Impedance 100 Ω
More Information
Attribute Value
Data Sheet Click here to view
