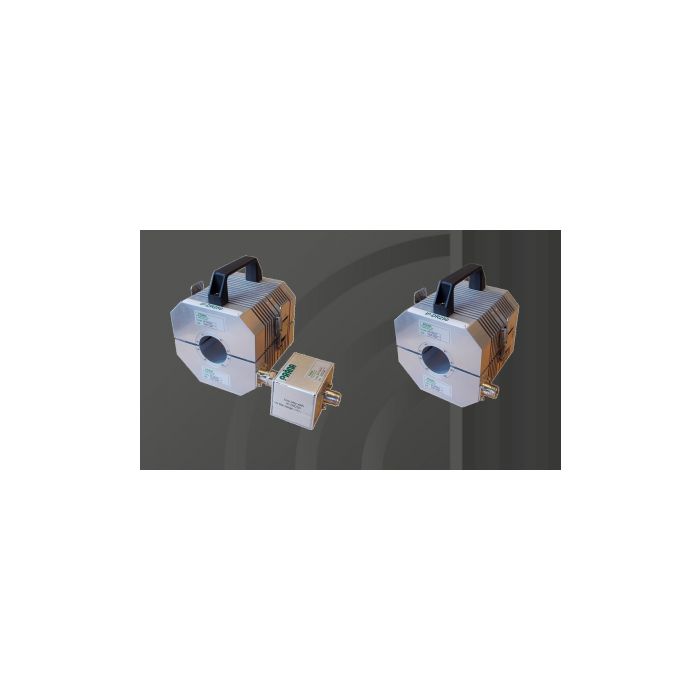

IP-DR250 Bulk Current Injection Probe

IP-DR250

Prâna RF

Inject RF current into cables of electrical equipment to test the susceptibility against radiated electromagnetic energy.

Bulk Current Injection Probe
Broadband (instantaneous single band): 10 kHz – 400 MHz
Frequency extension between 4 kHz and 10 kHz is possible with limited power specifications
Typical power: 500 W CW
Reliable, efficient and robust
3 years standard warranty

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

More Information
Attribute	Value
Weight	5.3 kg / 11.7 lb
Applications	DO 160 D MIL STD 461 CS106, CS114, CS115, CS116 Automotive standards: PSA, Renault, Ford, Daimler Chrysler… ISO 11452-4 SAE J1113-4
Included Accessories	Calibration JIG: CJ-DR250
Connector Type	Type "N" Female
Maintenance	Rapid diagnostic Minimal downtime Contract for preventive and corrective maintenance available
Power Input	Max input power: 500 W Input Power (with respect of core temperature = 80°C): 150 W - 60 min / 300 W - 30 min / 500 W - 15 min

More Information
Attribute	Value
Data Sheet	Click here to view
