IPP-1046
IPP-1046
Innovative Power Products

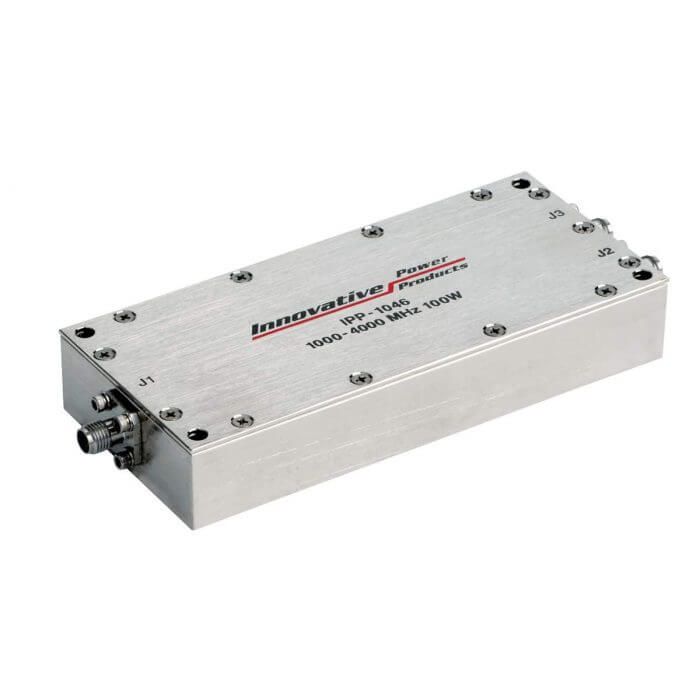

2-Way Power Divider / Combiner with a Frequency Range between 1000-4000 MHz; 100 Watts
IPP's connectorised power dividers and power combiners offer low insertion loss, low VSWR and high power capability in a small package size. They are available in frequency ranges from 2 MHz to 6000 MHz in power levels up to 2500 Watts CW, in 2-way, 3-way, 4-way, 8-way and N-way connections. Parts are available with SMA, N, TNC and 7/16 connectors. Other connectors are available upon request. The power divider/combiners are designed to be screw down mounted to an adequate heat sink.
You can request a sample of this product by speaking with a member of our RF and Microwave team on 0330 313 3220.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Insertion Loss (dB) | 0.6 |
| Phase Balance Degrees | 5.0000 |
| Frequency Range | 1000-4000 MHz |
| Power | 100 |
| Isolation | 14 |
| Amplitude Balance (dB) | 0.25 |
| Type | Connectorised Dividers/Combiners |
| View Test Data | https://innovativepp.com/wp-content/drawings/ipp-1046_typical_test_data.pdf |
| Package Size | 2.00 x 4.50" |
| VSWR Max | 1.30:1 |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
