IPP-1068

IPP-1068

Innovative Power Products

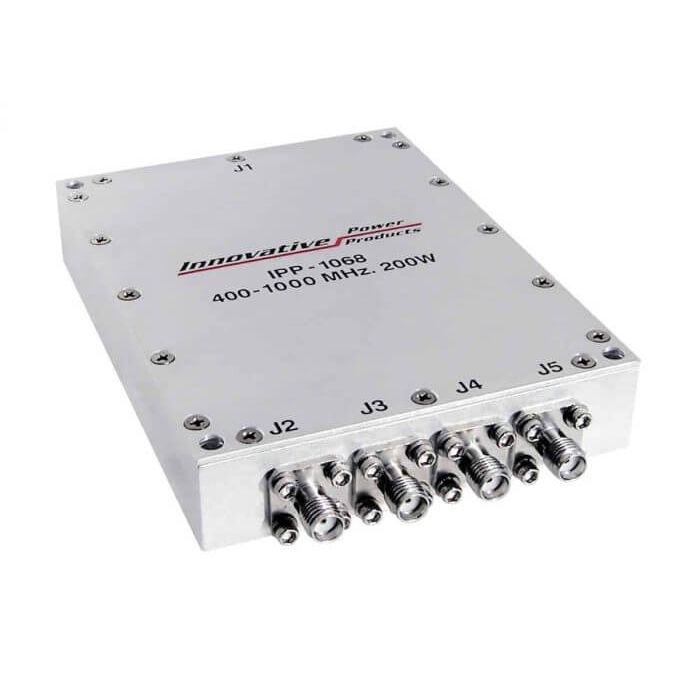

4-Way Power Divider / Combiner with a Frequency Range between 400-1000 MHz; 200 Watts

IPP's connectorised power dividers and power combiners offer low insertion loss, low VSWR and high power capability in a small package size. They are available in frequency ranges from 2 MHz to 6000 MHz in power levels up to 2500 Watts CW, in 2-way, 3-way, 4-way, 8-way and N-way connections. Parts are available with SMA, N, TNC and 7/16 connectors. Other connectors are available upon request. The power divider/combiners are designed to be screw down mounted to an adequate heat sink.

You can request a sample of this product by speaking with a member of our RF and Microwave team on 0330 313 3220.

Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

More Information
Attribute Value
Insertion Loss (dB) 0.6
Phase Balance Degrees 5.0000
Frequency Range 400-1000 MHz
Power 200
Isolation 10
Amplitude Balance (dB) 0.25
Type Connectorised Dividers/Combiners
View Test Data https://innovativepp.com/wp-content/drawings/ipp-1068_typical_test_data.pdf
Package Size 3.00 x 4.00"
VSWR Max 1.30:1
More Information
Attribute Value
Data Sheet Click here to view
