IPP-1130
IPP-1130
Innovative Power Products

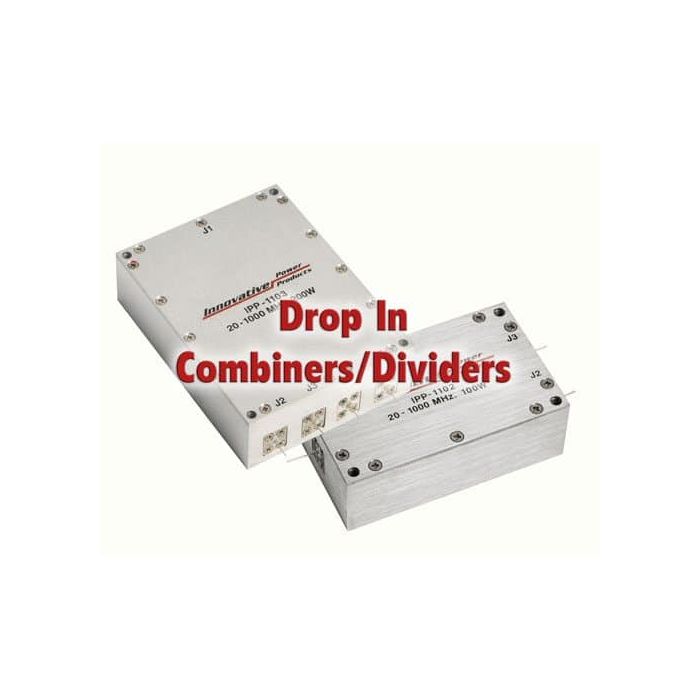

Drop-in divider/combiner (1200-1400 MHz), 500W
IPP drop-in power dividers/combiners are available in frequency ranges from 2 MHz to 4000 MHz, in 2-way, 3-way, and 4 way, configurations with power levels up to 500 Watts CW.
These drop-in power dividers/combiners are designed to be screw-down mounted to a heat sink with solder-down tabs for connecting directly to the RF lines on the PC board. This unique type of construction reduces the extra loss added by connectors and cables. The drop-in power dividers/combiners are available in narrow and broadband bandwidths making them ideal for applications including, power amplifiers and antenna feeds.
You can request a sample of this product or find out more by speaking with a member of our RF and Microwave team on 0330 313 3220.
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Phase Balance Degrees | 5 |
| Frequency Range | 1200-1400 MHz |
| Insertion Loss | 0.3 |
| Power | 500 W |
| Isolation | 18 |
| Amplitude Balance (dB) | 0.15 |
| Type | Drop-In Dividers/Combiners |
| Package Size | 2.00 x 3.00 |
| VSWR Max | 1.30:1 |
| N-Way | 2-Way |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
