Drop-In 90° Hybrid Coupler, 500-1000 MHz

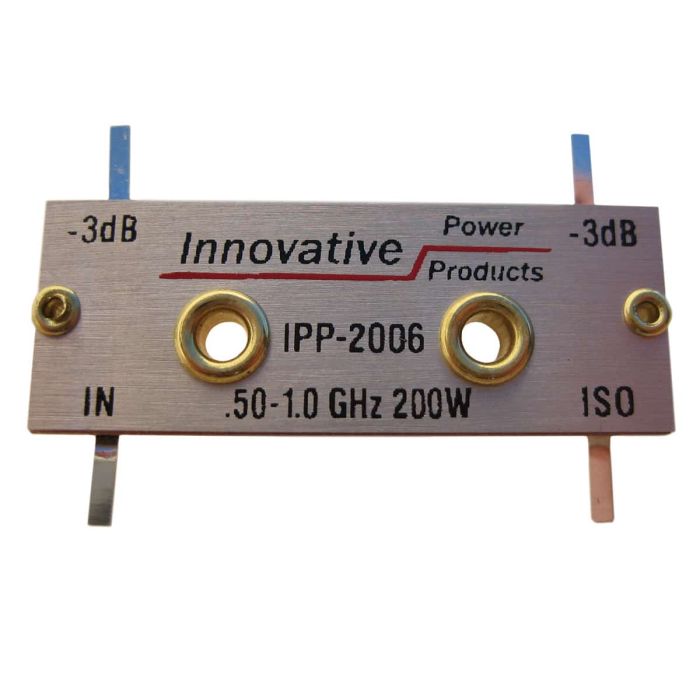

IPP's drop-in packages are designed to be screw down mounted directly to a heat sink. The RF connections are four tabs which are to be soldered down to the RF traces on the PCB. These drop-in 90-degree coupler line offers low insertion loss, low VSWR and high power capability in a small package. ROHS compliant devices are available.
These products are available in narrow and broadband bandwidths making them ideal for power amplifiers, power combiners/dividers, modulators antenna feeds, attenuators, switches, and phase shifter applications. The frequency range is from 20 MHz to 6,000 MHz in power levels up to 1500 Watts.
You can request a sample of this product or find out more by speaking with a member of our RF and Microwave team on 0330 313 3220.
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Phase Balance Degrees | 5.0000 |
| Frequency Range | 500-1000 MHz |
| Power | 200 W |
| Isolation (dB) | 20 |
| Insertion Loss (dB) | 0.25 |
| Amplitude Balance (dB) | 0.5 |
| Package Size | 0.50 x 1.35" |
| VSWR Max | 1.20:1 |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
