IPP-2127
IPP-2127
Innovative Power Products

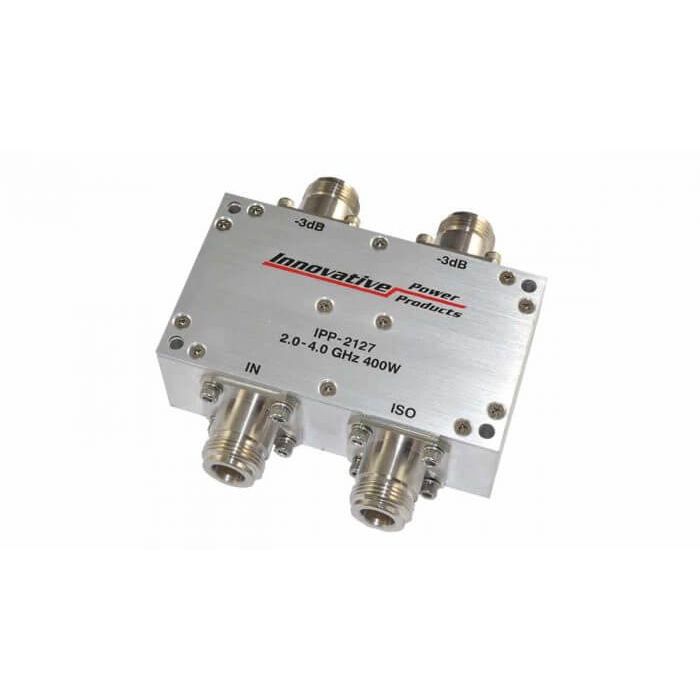

Connectorised 90 Coupler with a frequency range of 2000-4000MHz
Most IPP drop-in and surface mount style 90-degree hybrid couplers are offered with connectors. Depending upon the power these couplers are available with SMA, N, TNC, and 7/16 connectors. Other connector types are available upon request.
Applications for connectorised 90-degree hybrid couplers include power amplifiers, mixers, power combiners/dividers, antenna feeds, attenuators, switches, and phase shifters.
IPP's connectorised 90-degree coupler line offers low insertion loss, low VSWR and high power capability in a small package. These products are available in narrow and broadband bandwidths making them ideal for power amplifier applications.
You can request a sample by contacting a member of our RF and Microwave team on 0330 313 3220.
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Phase Balance Degrees | 5 |
| Insertion Loss Max dB | 0.5 |
| Power | 400 |
| Isolation | 18 |
| Amplitude Balance (dB) | 0.5 |
| Type | Connectorised 90 Degree Hybrid Coupler |
| View Test Data | https://innovativepp.com/wp-content/drawings/ipp-2127_typical_test_data.pdf |
| Package Size | 3.40 x 1.94" |
| VSWR Max | 1.30:1 |
| Connector Type Female | N |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
