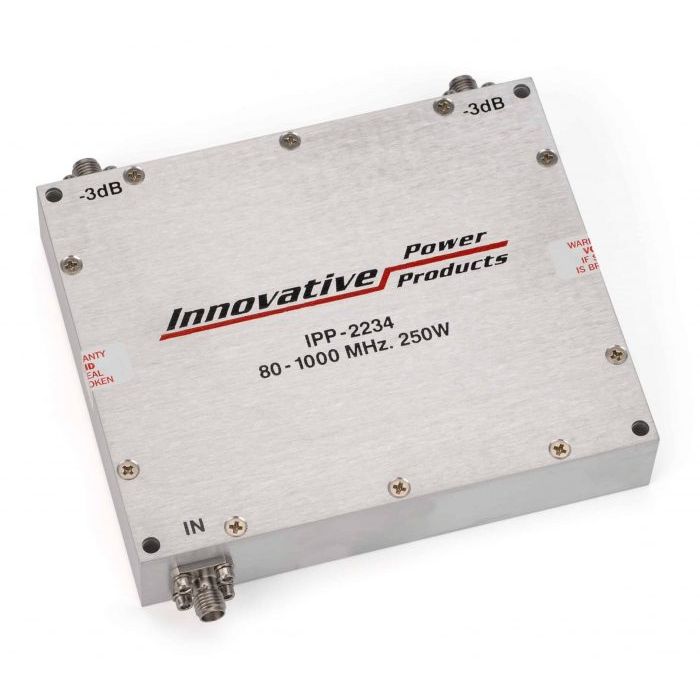

IPP-2234
IPP-2234
Innovative Power Products
Connectorised 90 Coupler with a frequency range of 80-1000MHz
Most IPP drop-in and surface mount style 90-degree hybrid couplers are offered with connectors. Depending upon the power these couplers are available with SMA, N, TNC, and 7/16 connectors. Other connector types are available upon request.
Applications for connectorised 90-degree hybrid couplers include power amplifiers, mixers, power combiners/dividers, antenna feeds, attenuators, switches, and phase shifters.
IPP's connectorised 90-degree coupler line offers low insertion loss, low VSWR and high power capability in a small package. These products are available in narrow and broadband bandwidths making them ideal for power amplifier applications.
You can request a sample by contacting a member of our RF and Microwave team on 0330 313 3220.
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Phase Balance Degrees | 8.0000 |
| Insertion Loss Max dB | 0.8 |
| Power | 250 |
| Isolation | 16 |
| Amplitude Balance (dB) | 1.2 |
| Type | Connectorised 90 Degree Hybrid Coupler |
| Package Size | 4.25 x 3.50" |
| VSWR Max | 1.35:1 |
| Connector Type Female | SMA |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
